ISOBUS Block. 8 and 32-channel relay modules.Your joystick. Your buttons. 8 or 32 new controls.
Wire up solenoids, lights, or valves. Name each button, pick an icon, assign to your joystick. Any ISOBUS tractor.
From $1,099·5-year warranty·Ships worldwide
Old switch box, modern tractor.
A new ISOBUS implement is a lot of money when the old implement still does the job.
Every implement, a different box
One switch box per implement. Different maker, different layout, different labels.
Numbers, not names
Every toggle is a number, not a name. You keep the map in your head.
Tractor controls go unused
Your tractor already has a screen and an AUX-N joystick for this. Standard on Fendt, John Deere, Case IH, and Valtra. An add-on switch box can't use either.
You take the layout you get
Toggle 3 is toggle 3. Nothing on the box moves to a joystick button.
One module. No new switches.
An ISOBUS conversion used to be an engineering project. Now it's a parts order. Plug into the tractor's ISOBUS connector, your outputs show up on the screen, and you assign them to any button.

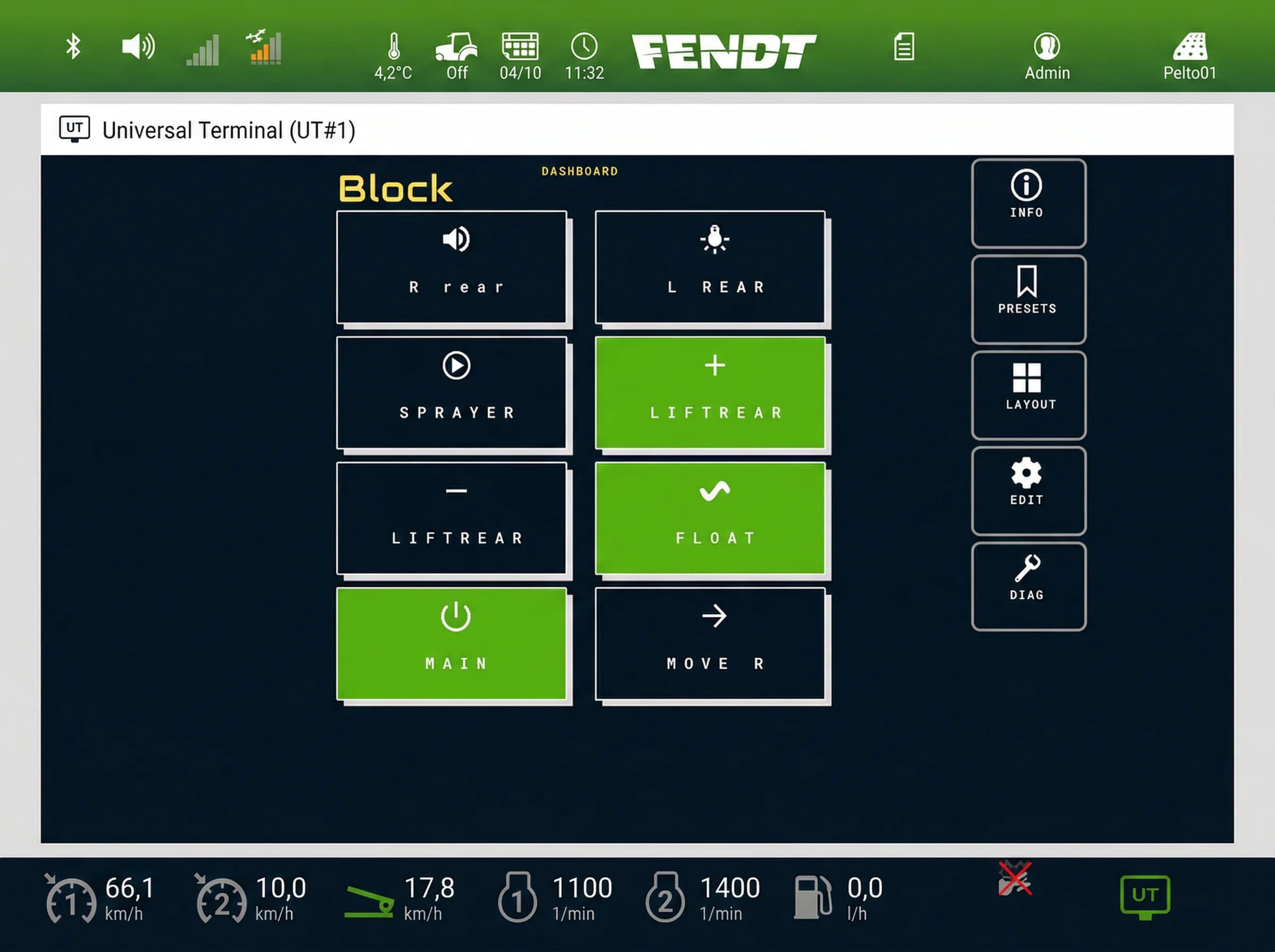

On the Virtual Terminal

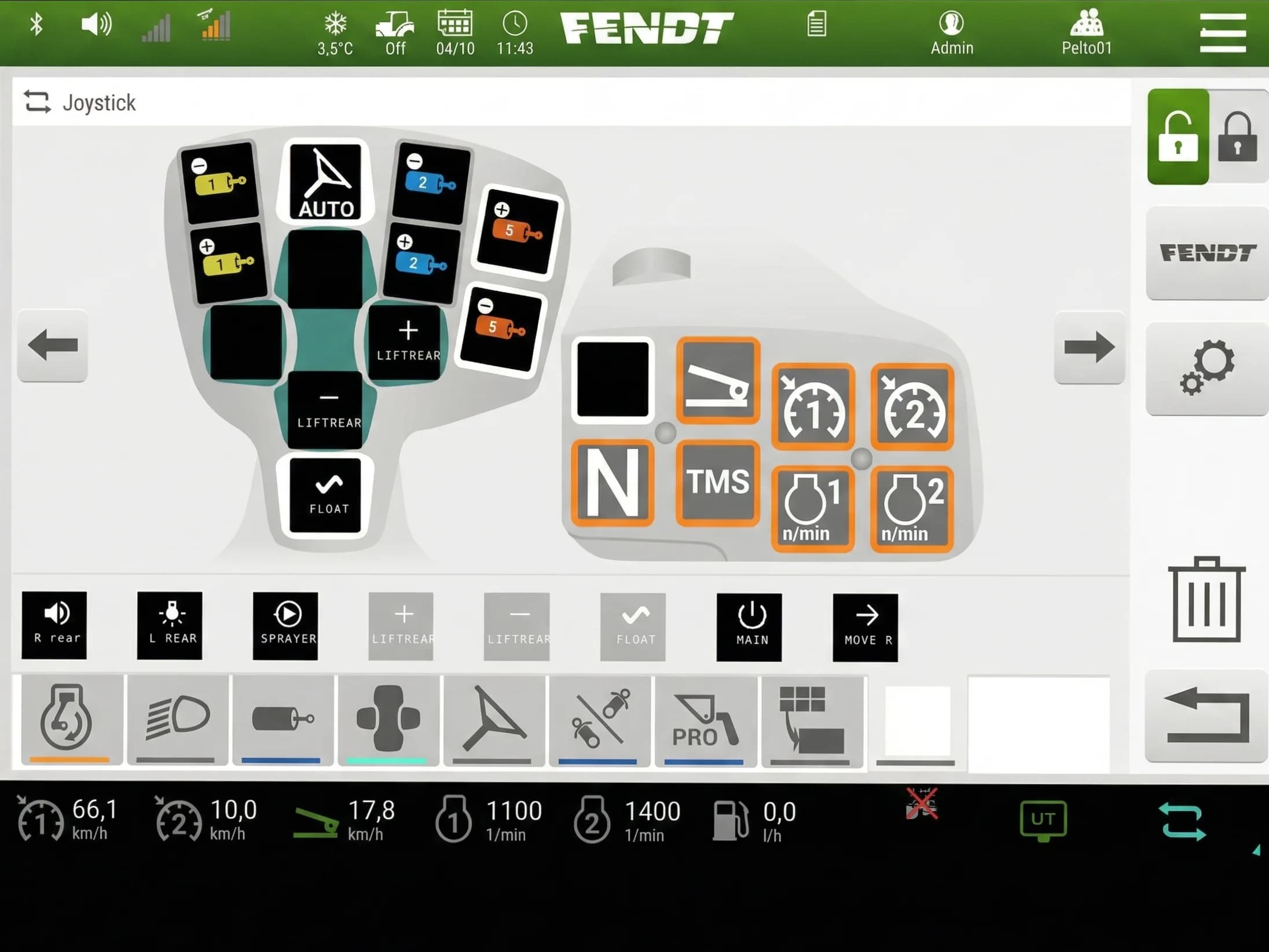

On the joystick assignment page
Name a button once. The same label carries over to the joystick assignment page. No re-labeling when you swap implements.
Type the name. Choose the icon.
Every button takes a name you type and an icon you choose. Call it FOLD, LIGHTS or whatever that machine needs, and the tractor shows exactly that.
Automation you build yourself.
Simple automations you set up on the tractor screen. No code, no app, no laptop.
- Run two wires from a sensor or a switch to an input.
- On the screen, pick which output it should switch and how.
- Turn it on when you want it. Grab the joystick and you are back in manual.
The inputs are on the 8-channel module. The 32-channel module does not have them.
See the 8-channel module
It shows up on your screen
Whatever your brand, ISOBUS Block runs on the terminal you already have.
Brand names are the property of their respective owners. ISOBUS Block is not affiliated with or endorsed by any tractor manufacturer.
On customers' machines
Photos from customers and from builds before they shipped. We ship the module. The enclosures, fuses and wiring in these pictures are the customer's own or built to order.
A customer's machine: an Amazone Pantera being converted from a sprayer into a harvesting machine. A 32-channel build switches its new functions.
The same machine from the seat. The build's functions carry the customer's own names, assigned to the joystick in the AmaTron 4's AUX-N menu.
The same customer's build before shipping. The 32-channel module is the black unit; the enclosure, fuse boxes, wiring and channel map were built to order.
A hook-lift trailer in the UK, fitted by our dealer Tramline Tec. The 32-channel module in an enclosure on the chassis. We ship the module only; the box, terminals and wiring are the installer's.
A customer's Fendt 724. The module in a weatherproof box bolted under the cab; six channels run to a 15-pin socket at the rear for the tipper. Full wiring on the use-case page.
The same tractor from the seat. Axle lift, tailgate and horn on the joystick, named by the customer on the terminal.
What customers tell us
It was a pleasure to work with you, very knowledgeable and nothing too much of a problem. Great piece of ingenuity.
A customer in Austria fitted the module to a new Fendt 724 and wired six channels to the 15-pin socket for a three-way tipper, with two spare in the cab. He wrote that the install was plug and play and that controlling the tipper from the terminal is comfortable.
Austria. Fendt 724 Gen6, three-way tipper with lift axle.
Excellent customer service. The rake worked really well all season, much easier steering with the ISOBUS Block installed.
Order
Pick a module, or have a build made for your machine.

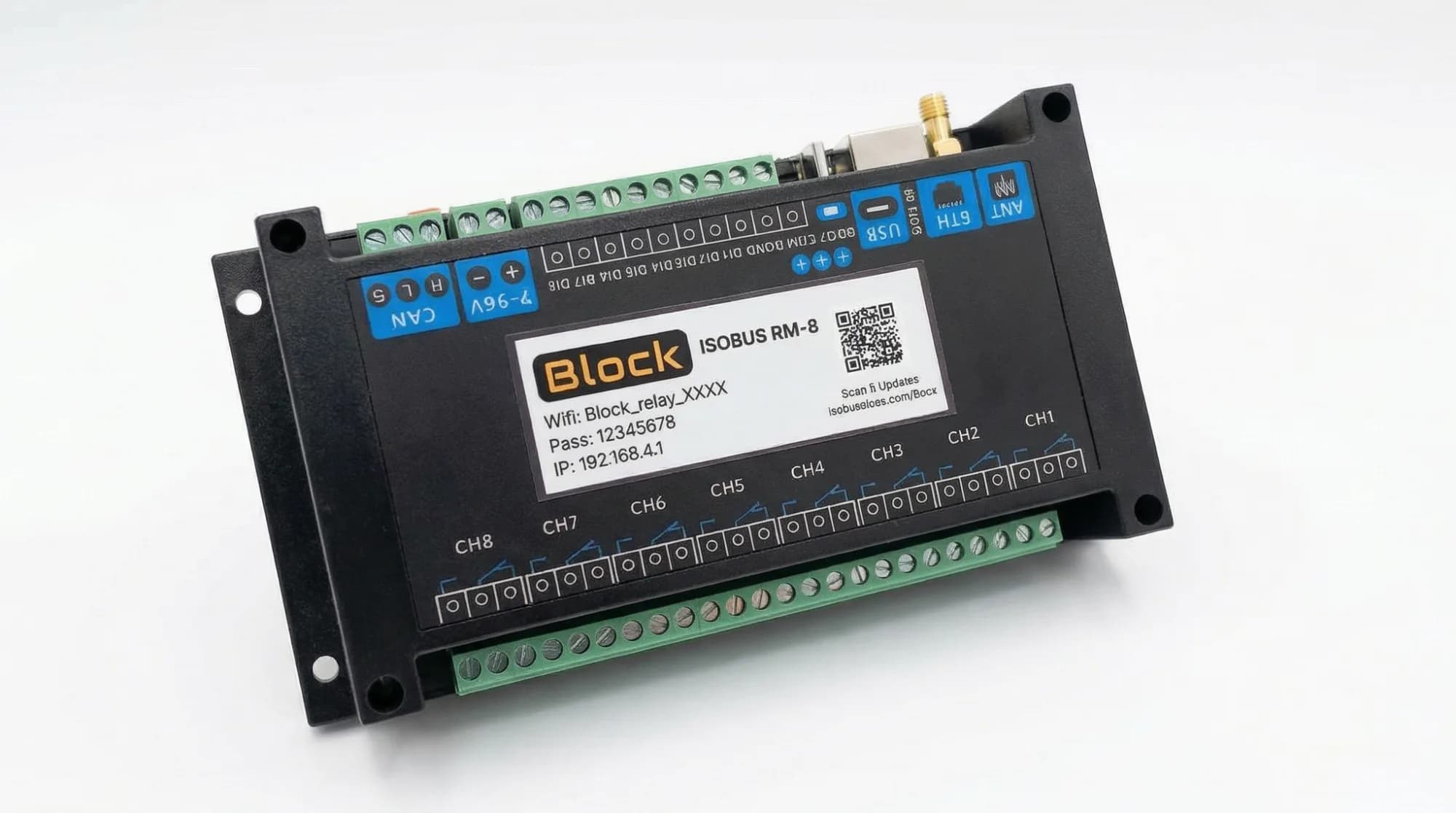

ISOBUS Block 8-Channel Relay Module

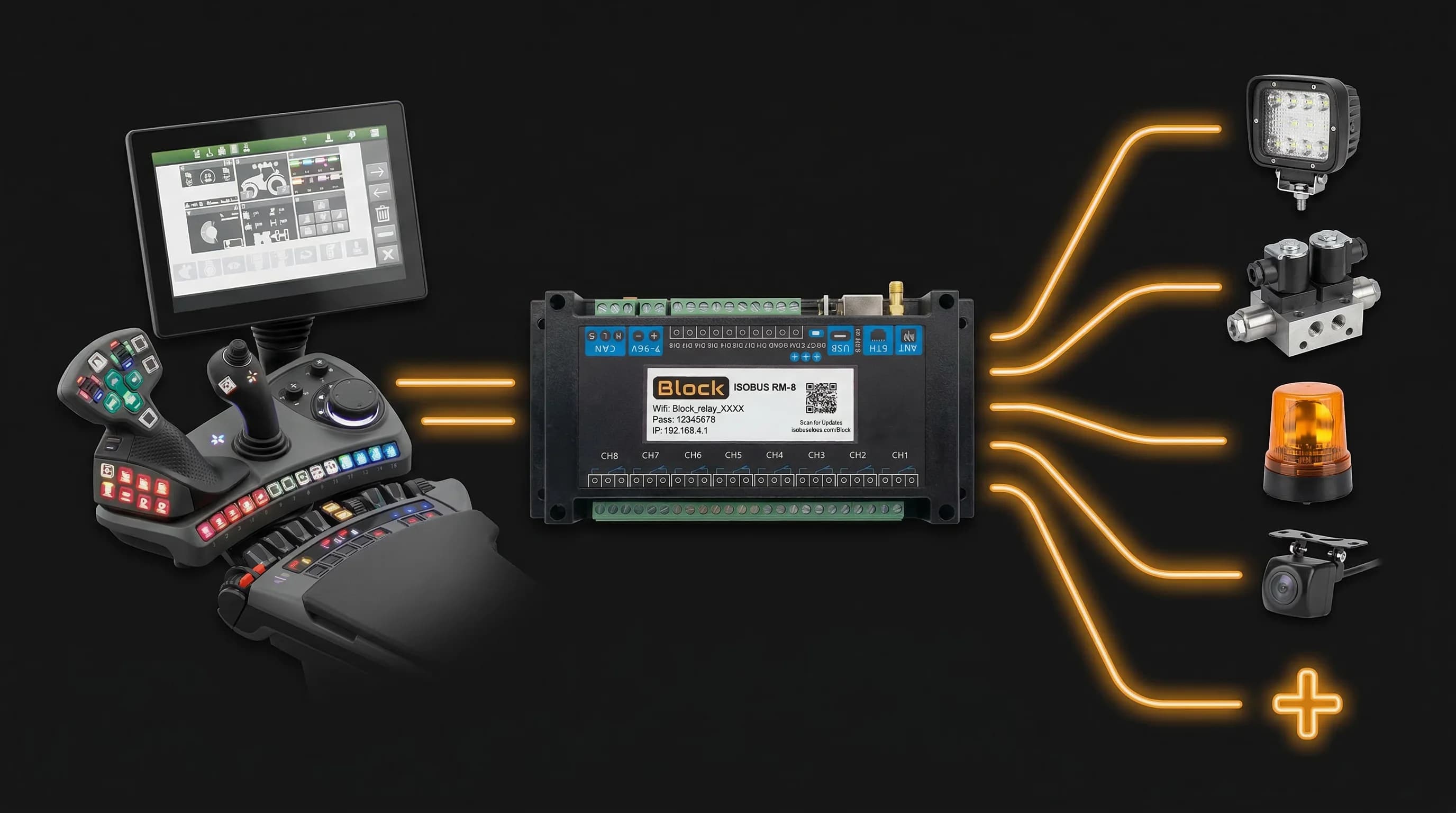

Universal implement ECU. Retrofit ISOBUS onto any implement. 8 relay channels, 8 sensor inputs, controlled from the tractor screen or AUX-N buttons.
- 8 relay channels
- Sensors can switch the relays automatically
- AUX-N: assign any channel to a joystick or armrest button
- Runs on 12 V and 24 V tractors
- Five-year warranty
ISOBUS Block 32-Channel Relay Module
When eight outputs are not enough. 32 relay channels, 10 A each, controlled from the tractor screen and the AUX-N buttons you already have.
- 32 relay channels
- AUX-N: assign any channel to a joystick or armrest button
- Runs on 12 V and 24 V tractors
- Five-year warranty
ISOBUS Block, built to order
We build it for your machine.
- As many channels as needed
- Your connectors and cable lengths
- Buttons named for your functions
Not sure which fits? Ask on WhatsApp
Dealer, shop, or ordering multiple units? Contact us for volume pricing
Machine manufacturer? OEM & private label
Works With Your Tractor
John Deere, Case IH, New Holland, Kubota, AGCO. Any tractor with ISOBUS and AUX-N.
5-Year Warranty
Five-year warranty. If it fails, we replace it.
European Engineering
Designed and tested in Finland. Built for professional use.
Free US Shipping
Shipping included. Ships within 1 business day. Delivery: 5–10 business days.
No Subscription, No Software
One-time purchase. No app, no account, no annual fees. Firmware updates are free, forever.
Questions?
Straight answers to the ones operators ask before they order.
ISOBUS, hydraulics, software. We build the integrations and ship the modules. Sold direct and through dealers in Finland, Germany, France, Spain, the UK, Australia, and New Zealand.
