ISOBUS Block Shop
Three ways to get the 8-channel relay platform on your tractor. Pick the install that fits.

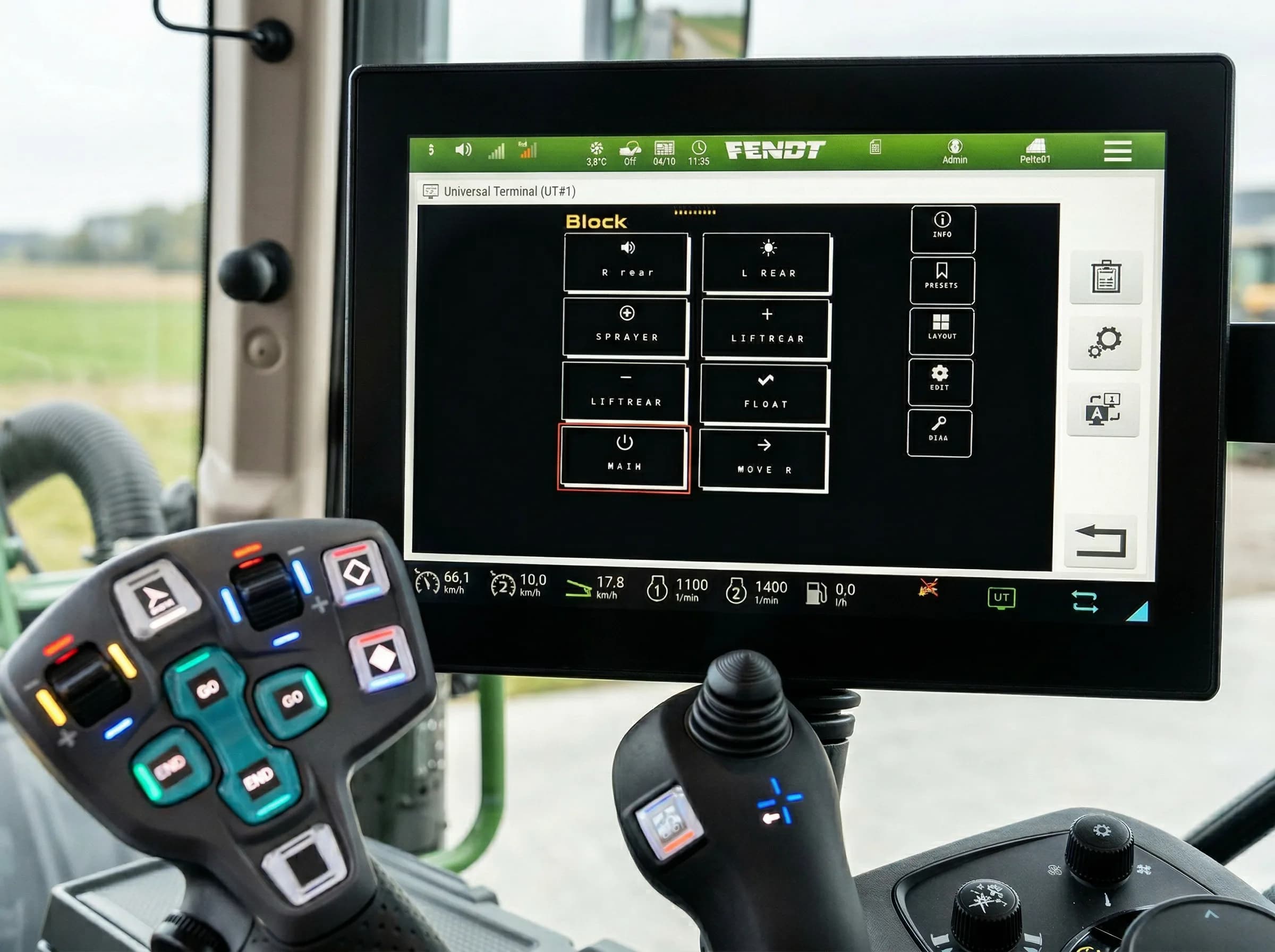

Built for ISOBUS8 relay channels, controlled from the tractor screen and AUX-N joystick.
Five-year warrantyDesigned and tested in Finland.
Ships from FinlandEU-wide delivery. VAT calculated at checkout.
Pick your install path
Three ways to buy the same 8-channel relay platform. Start with the bare module, add a cabin harness, or skip the shop and bolt a weatherproof kit straight to the implement.
See the module
ISOBUSBLOCK-MODULE
The Module
The building block. DIN-rail relay unit, ISOBUS connector, firmware.
From$1,099+ tax calculated at checkout
- 8 × 10A relay outputs with NO, COM, NC per channel
- DIN-rail mount — you pick the enclosure
- You supply the harness and loom to your loads
- For integrators and shops wiring from scratch
See the cabin kit
ISOBUSBLOCK-CABIN
Cabin-Ready
Module plus a pre-built 1.8 m harness to the in-cab ISOBUS connector. Plug it in, done.
From$1,249+ tax calculated at checkout
- Everything in The Module
- 1.8 m pre-built harness from module to the in-cab ISOBUS connector
- Same in-cab ISOBUS connector on every tractor brand
- You run the output side to your loads
See the implement kit
Most popular
ISOBUSBLOCK-IMPLEMENT
Plug-and-Play
Weatherproof kit, pre-wired Deutsch connectors, bolts to the implement.
From$1,799+ tax calculated at checkout
- Everything in Cabin-Ready, pre-wired
- IP-rated enclosure bolts to the implement frame
- 8 × Deutsch DT connectors on the output side
- One cable to the tractor — no shop day needed
Help me choose
Same core module in all three. The difference is how much wiring work you take on.
The ModuleISOBUSBLOCK-MODULE | Cabin-ReadyISOBUSBLOCK-CABIN | Plug-and-PlayISOBUSBLOCK-IMPLEMENT | |
|---|---|---|---|
| What's pre-wired | Nothing. Bare module. | In-cab harness (1.8 m) | Full kit, both sides |
| Where it mounts | DIN rail, your enclosure | DIN rail in the cab | Implement frame (IP-rated box) |
| Tractor-side connector | You supply | In-cab ISOBUS (pre-terminated) | External rear ISOBUS (pre-terminated) |
| Implement-side output | Screw terminals | Screw terminals | 8 × Deutsch DT connectors |
| Install time | 2–3 h, full wire-up | 1–2 h, output side only | ~30 min, bolt-on |
| Best for | Integrators, custom builds | Shops wiring the output side | Operators adding functions in the field |
| Price | $1,099 | $1,249 | $1,799 |
| Warranty | 5 years on the module | 5 years on the module | 5 years on the module |
Not sure which fits?
Message us on WhatsAppPrices exclude sales tax. Tax is calculated at checkout based on your shipping address.
We build custom kits too
Tell us what you want to control, and we'll work out a build for it.
