Use Cases
How machines are converted to ISOBUS control.
Example installs. Order the same from your dealer.
Each example shows a finished install: what was wired and what the buttons do.
- 1Wire itBattery to COM, NO out to the load.
- 2Name itA name, an icon, MOM or TOG.

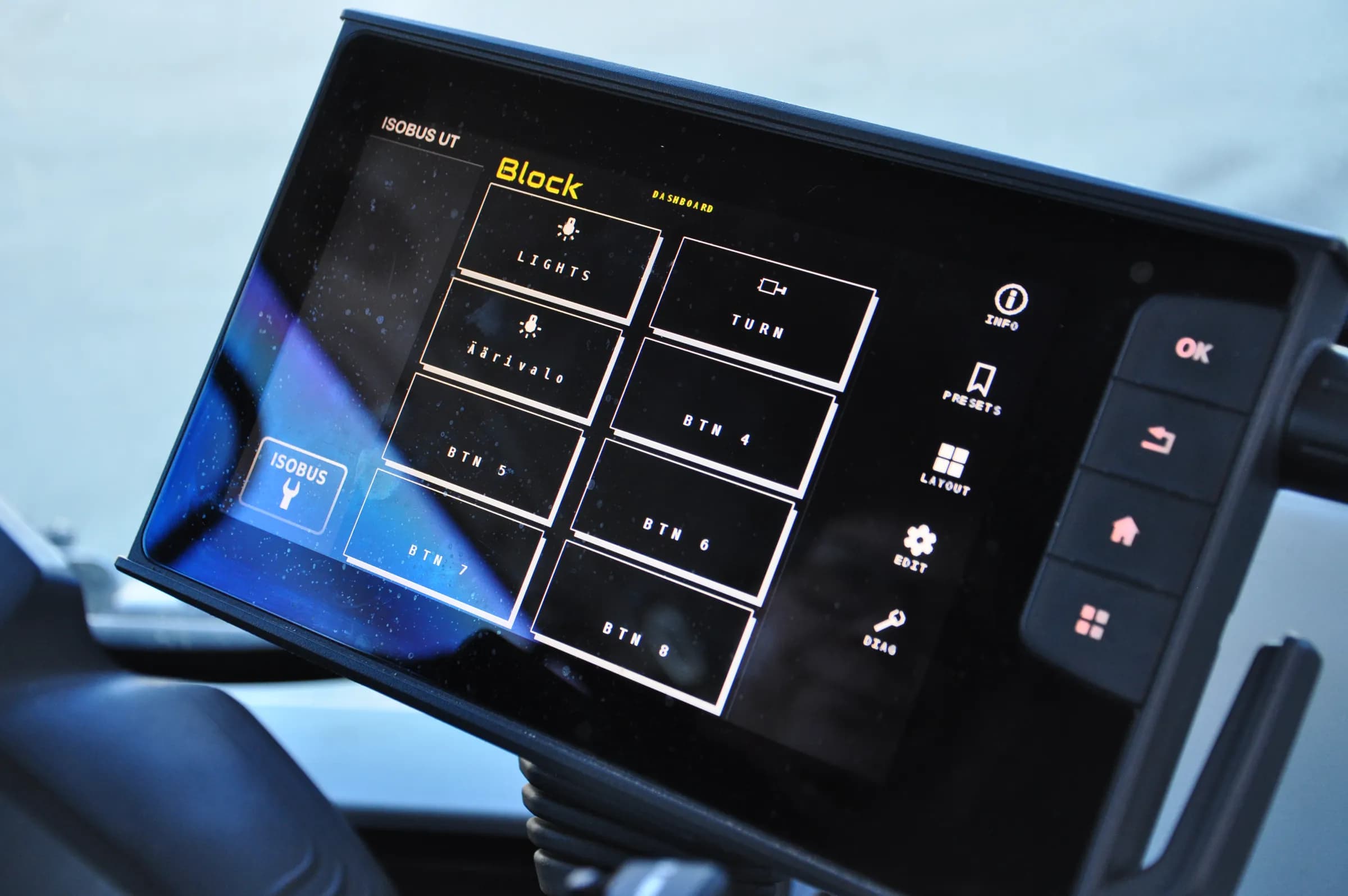

- 3Drive itFrom the screen or an armrest button.
Hook-lift trailer on a 32-channel module (Tramline Tec install)
A hook-lift trailer carries a long list of solenoids: the hook arm, the container locks, the rear door, the lift axle, the lights, and whatever the body on it needs. One 32-channel module on the chassis covers all of them from the tractor screen and the joystick, with more than half the module still free.
Built byTramline Tec13 outputs · 19 spare · 1× 32-channel
Amazone Pantera: from sprayer to harvesting machine on a 32-channel build
Amazone Pantera sprayer turned harvesting machine, fitted by Adour Motoculture. Header and spout run from the AmaTron 4 and AUX-N joystick.
Built byAdour MotocultureCustom build

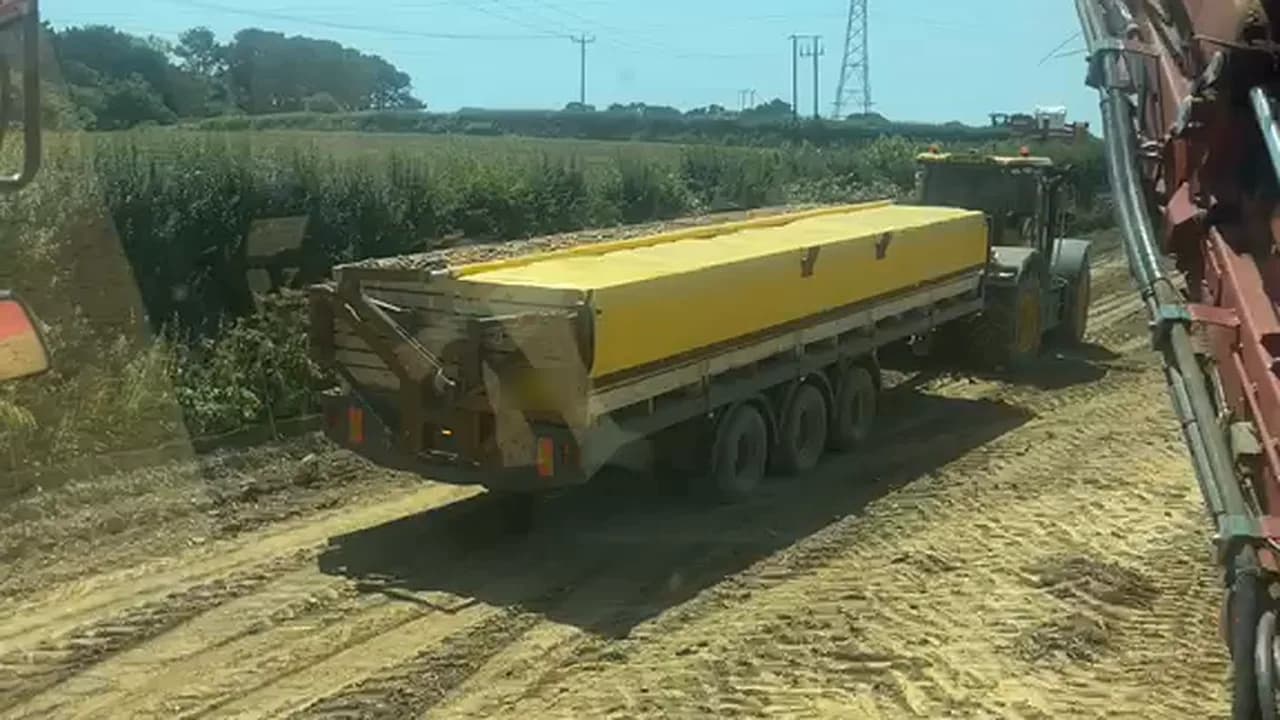

Potato trailer: switch box replaced with an 8-channel module
Robert N. in the UK put his potato trailers on ISOBUS: the switch box carried into the cab replaced by an 8-channel ISOBUS Block on the trailer. Sheet and walkway from the tractor's buttons.
Built by the customer
Retrofitting

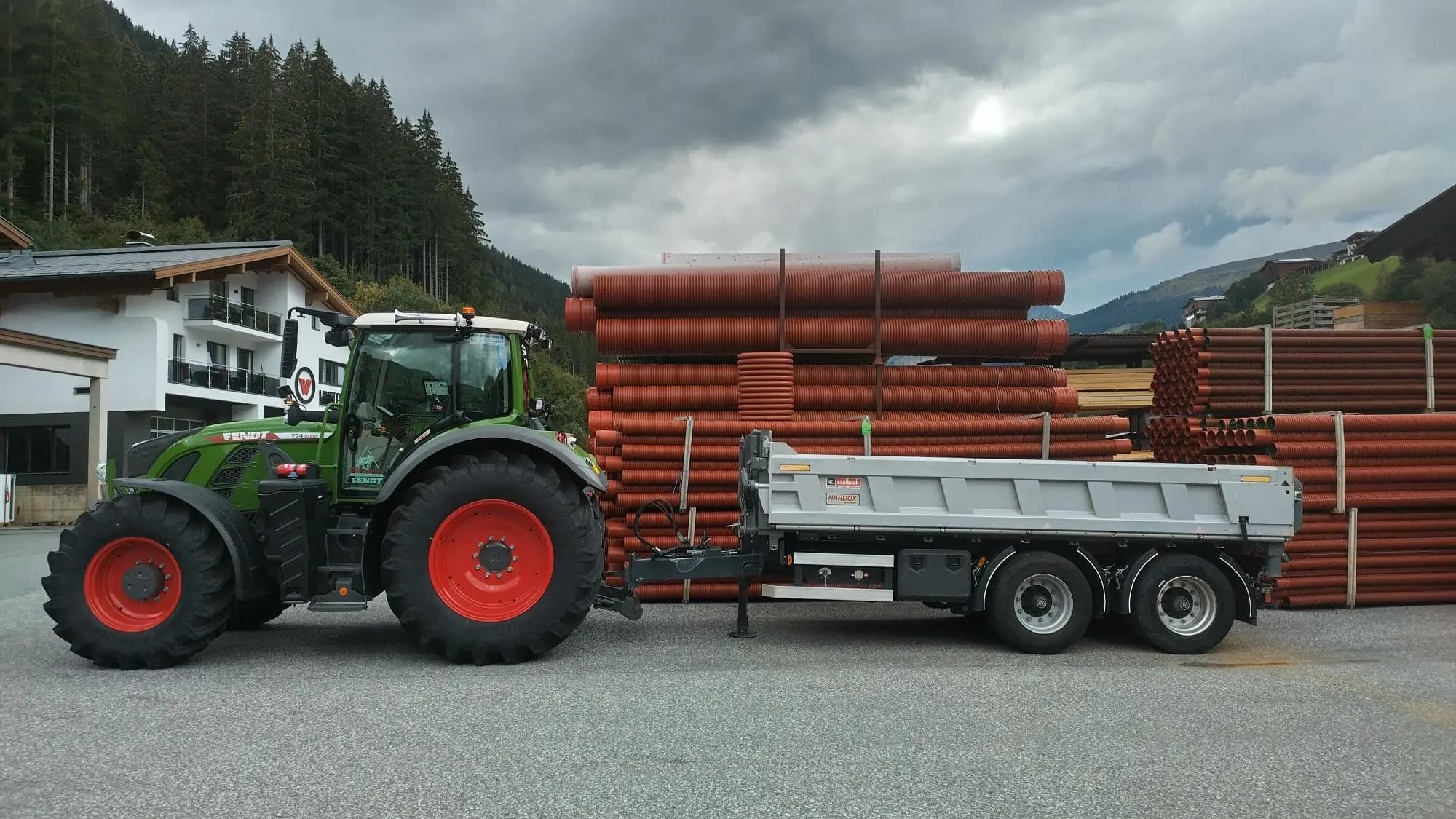

Add relay outputs to a modern tractor (Fendt 724 install)
A Fendt 724 gained eight programmable relay outputs it didn't have from the factory, wired and named like any other AUX-N function on the terminal. Six of them land on a new 15-pin ISO 12098 socket at the rear, so any implement wired to match can plug in and get working controls straight away. The other two stay in the cab, and each implement gets its own preset, so swapping to the next one is a preset change on the terminal, not a rewire.
8 outputs · 1× 8-channel

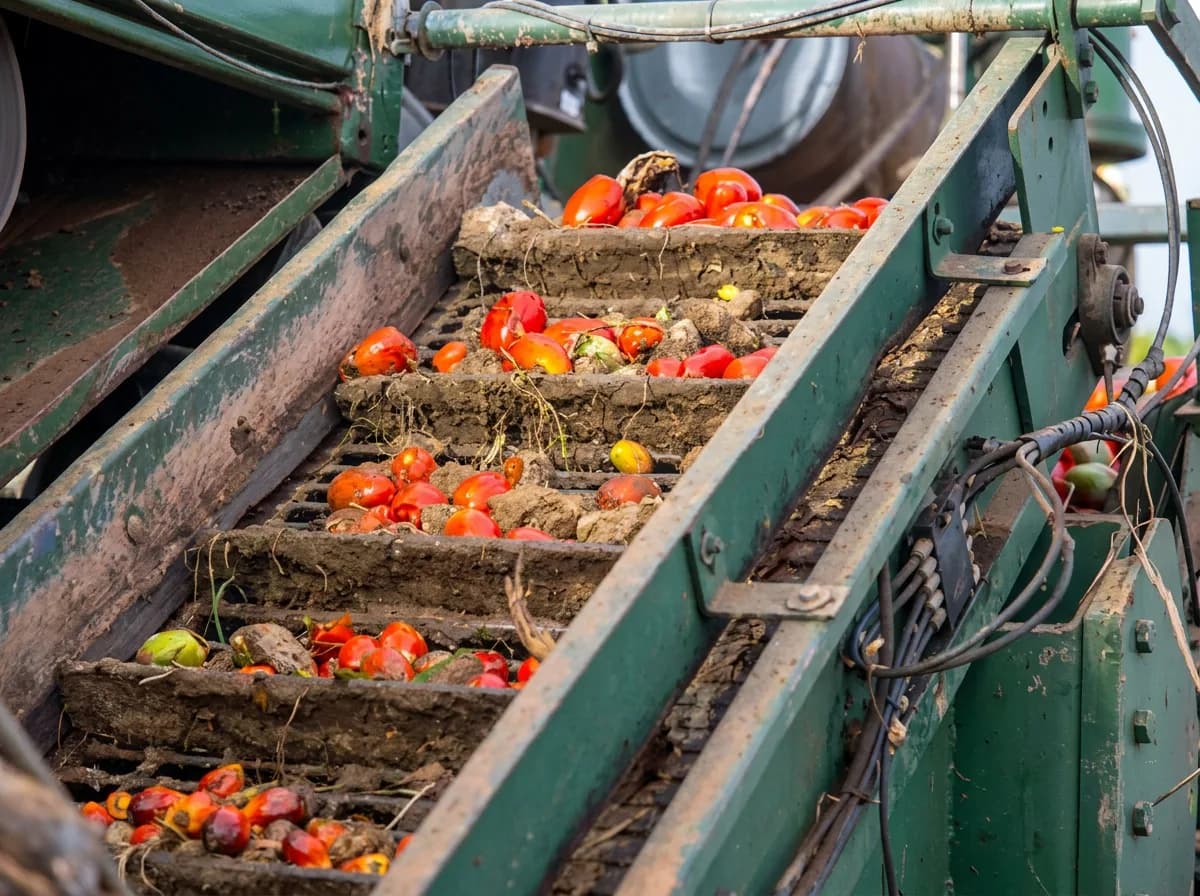

Conveyor with automatic lift
Two outputs raise and lower the conveyor head. A flap sensor on one input raises it for you as the heap builds, on a button you arm from the armrest. Six channels spare and seven inputs still free.
2 outputs · 6 spare · 1× 8-channel · 1 sensor

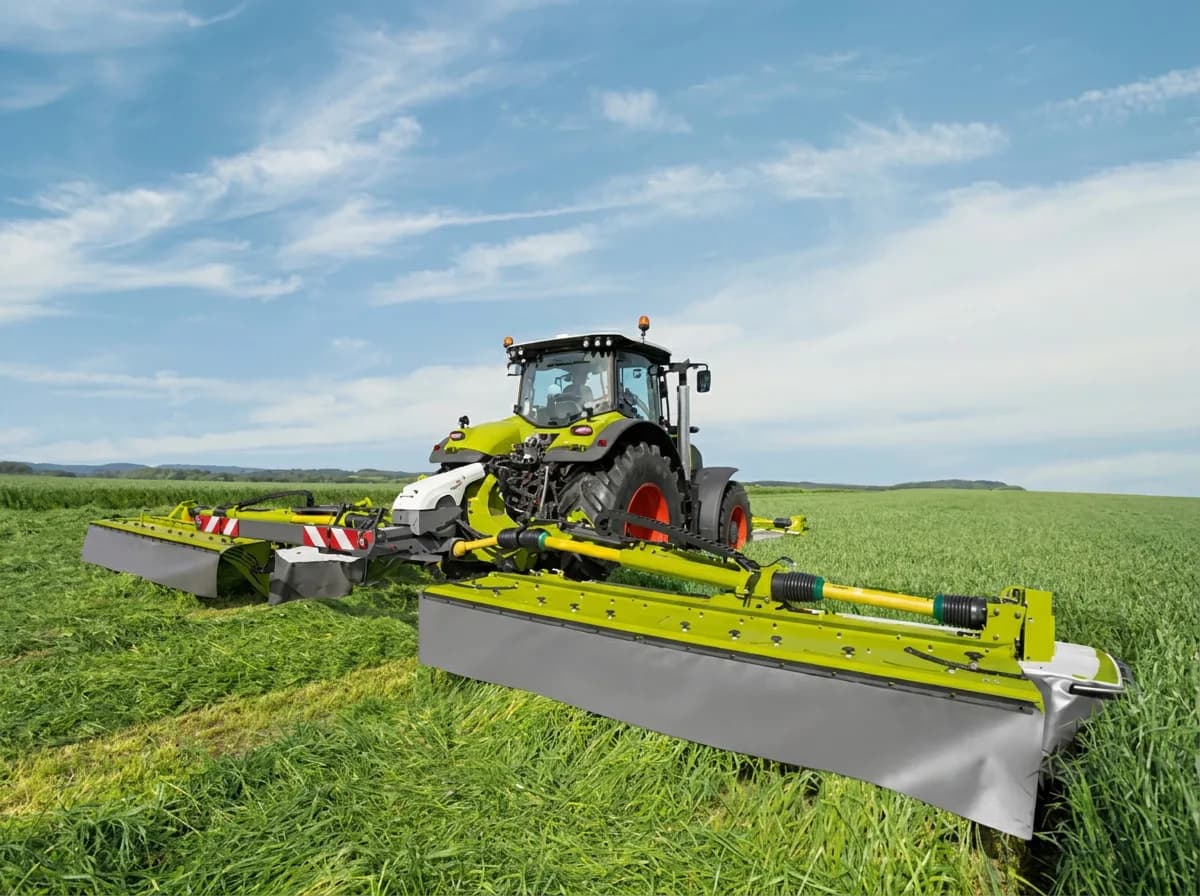

Claas Disco butterfly mower
A Claas Disco butterfly combination on the back of the tractor. Each unit lifts and lowers on its own double-acting valve, so four solenoids run off four relay outputs and four channels stay free.
4 outputs · 4 spare · 1× 8-channel

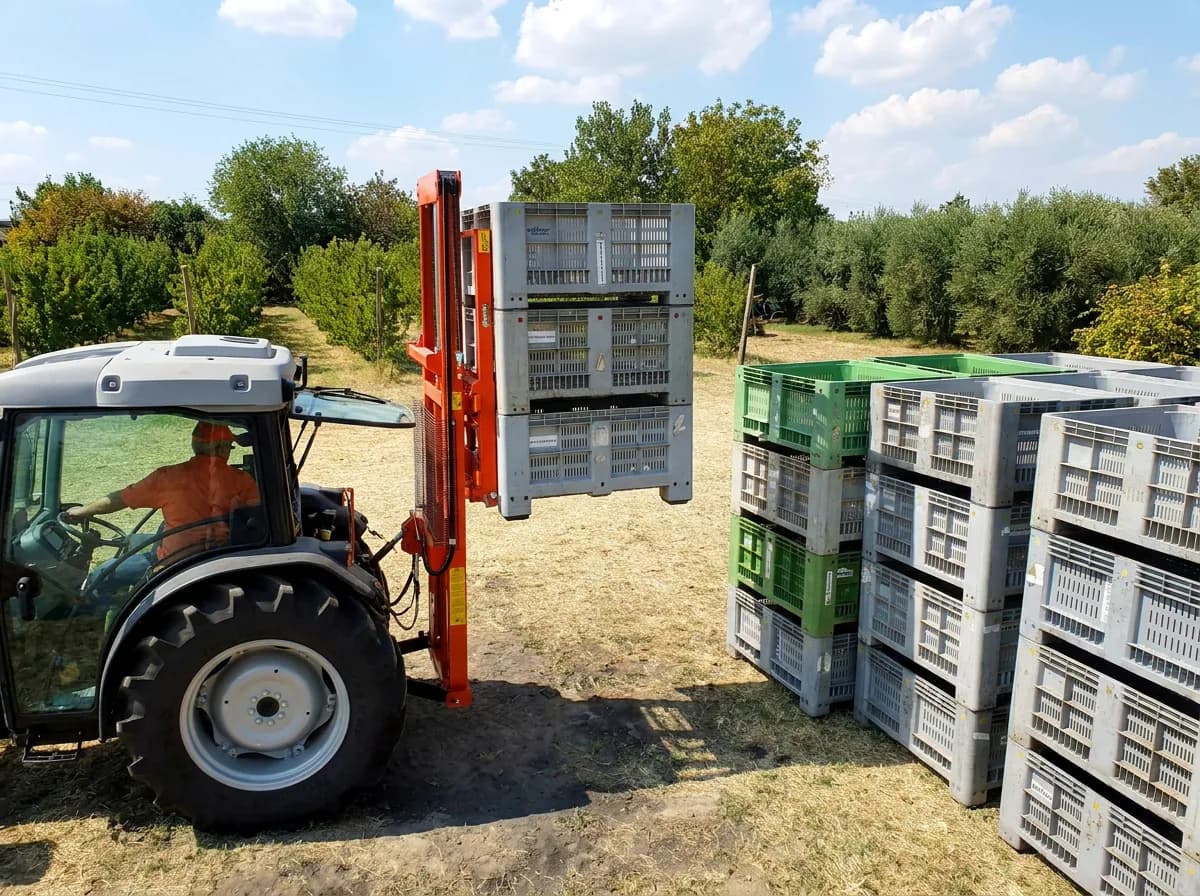

Hydraulic fork stacker
A tractor-mounted fork stacker with a three-section directional valve: lift, tilt and fork spread. Six double-acting solenoids, one 8-channel module, and nothing changes on the valve block.
6 outputs · 2 spare · 1× 8-channel

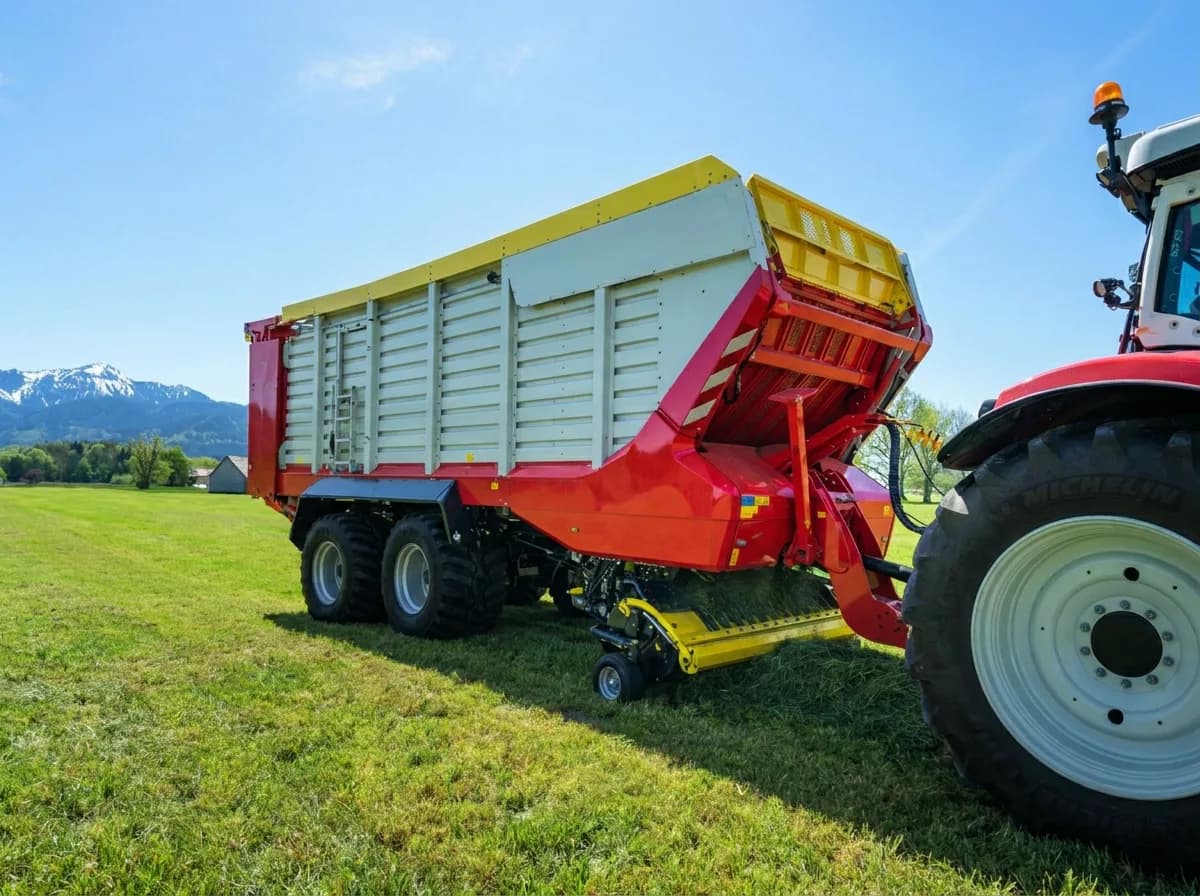

Pöttinger forage wagon
A Pöttinger forage wagon with no ISOBUS of its own. Eight outputs cover the pickup, the boom, the rear door, the conveyor floor and the buzzer. Two sensors on the digital inputs take the floor over while you load and unload, on one button you arm from the armrest.
8 outputs · 1× 8-channel · 2 sensors
Not on the list?
A channel switches any 12 V or 24 V ON/OFF load up to 10 A. These are the ones people wire most.

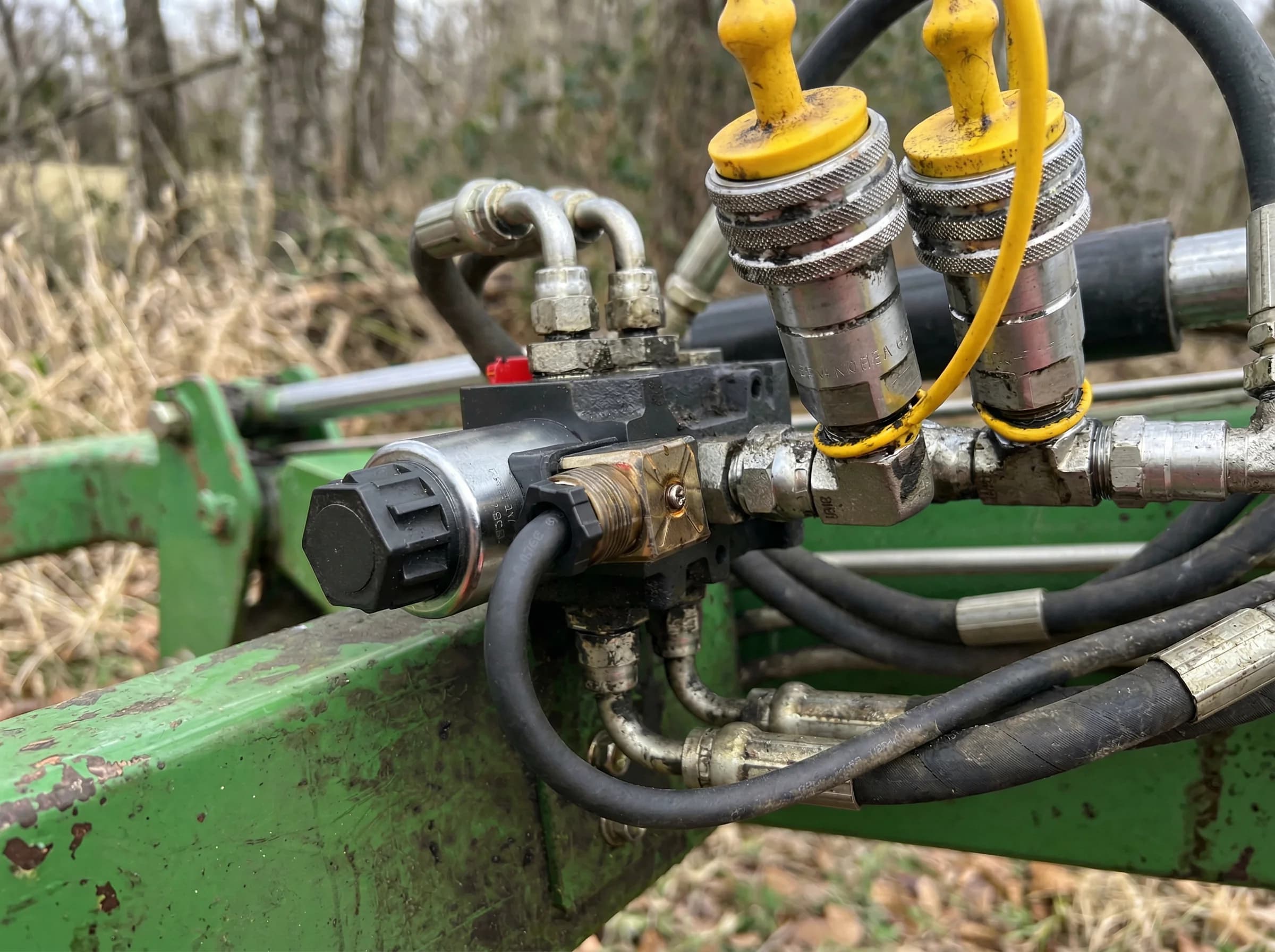

Hydraulic solenoid valves
Front loader third function, diverter valves, implement valve blocks. Anything with a 12V ON/OFF solenoid coil.

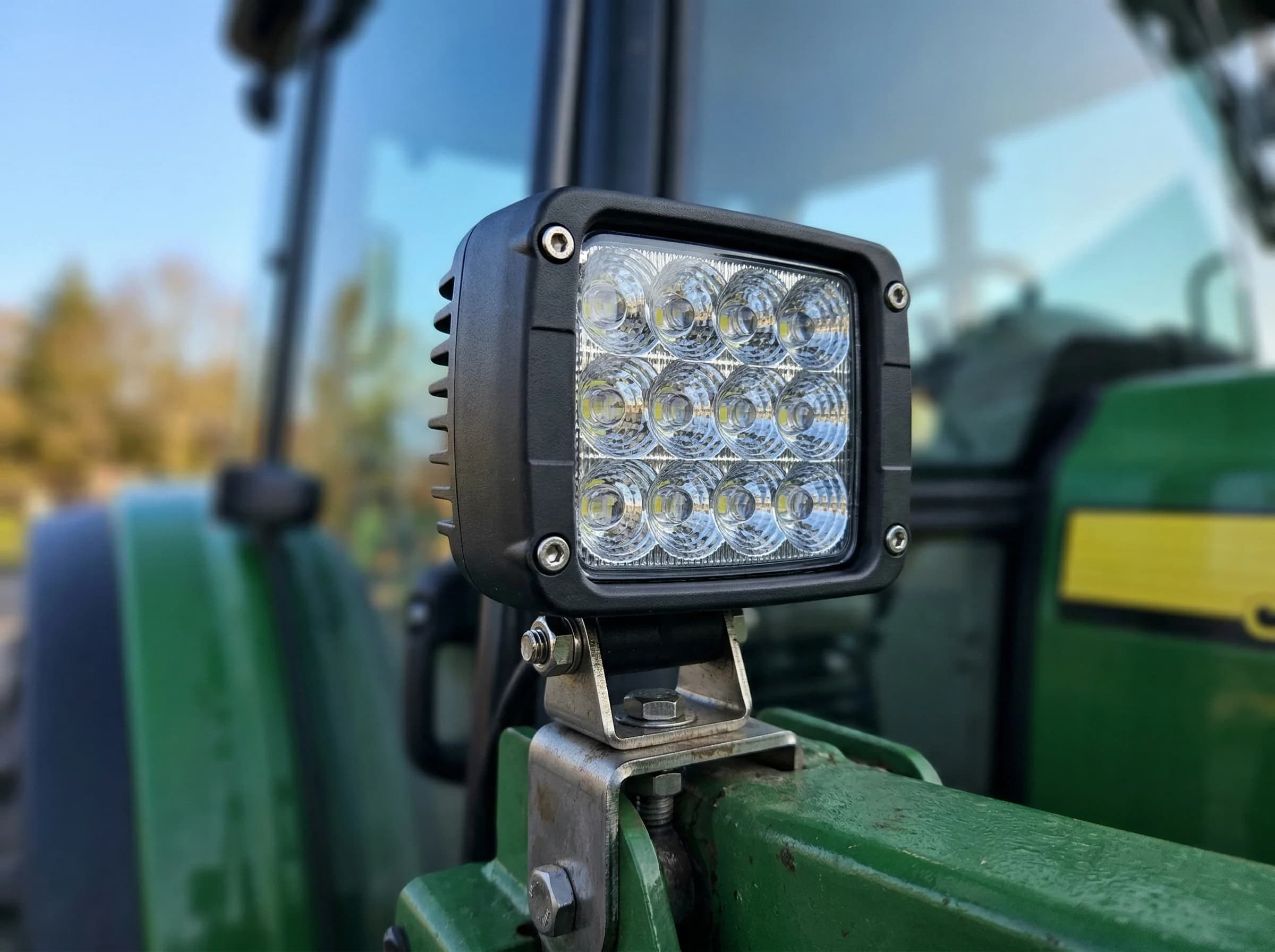

Work lights & LED bars
Extra work lights, boom lights, cab lights. Switch them from the joystick. No new harness, no new switches.

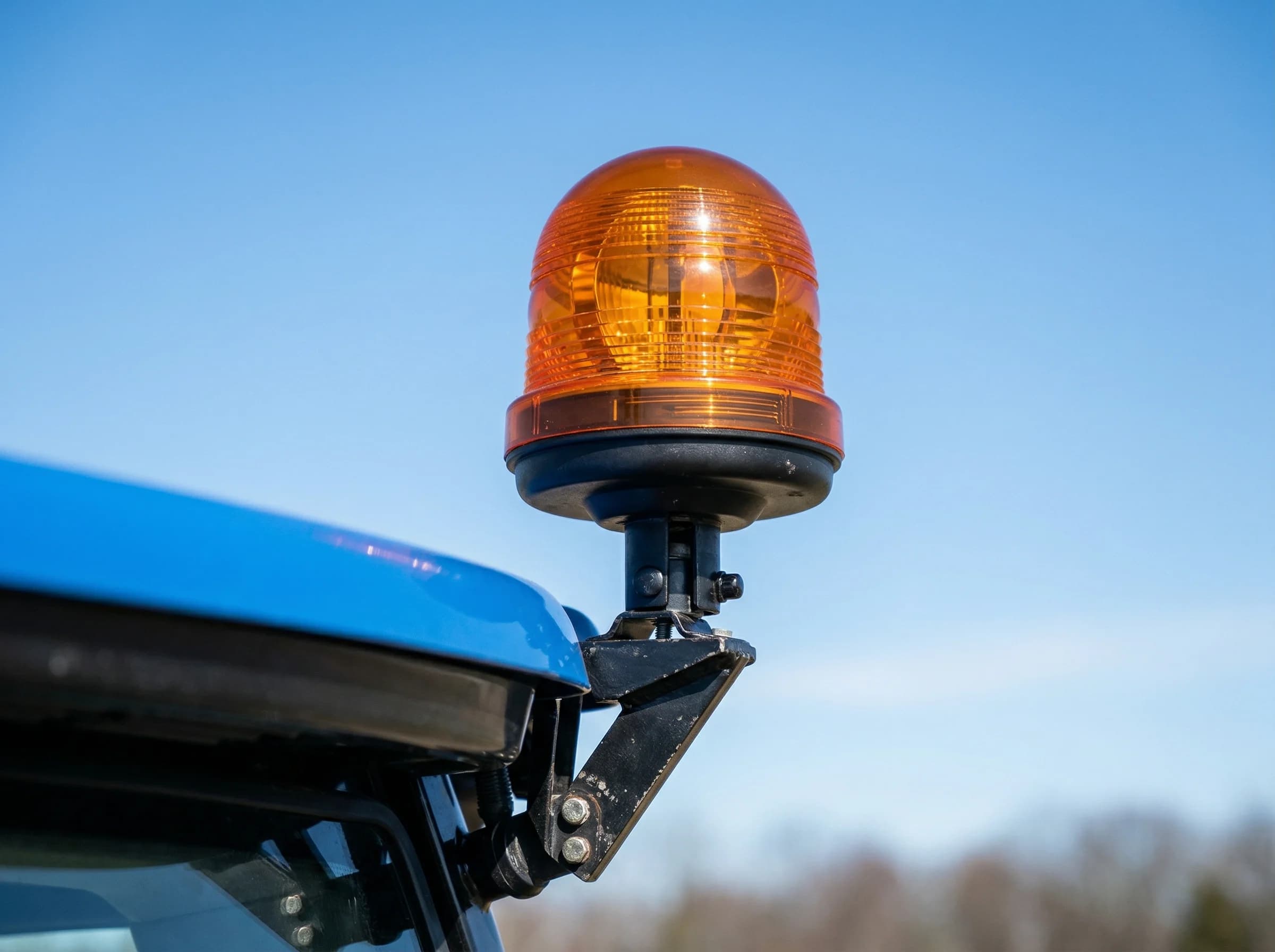

Beacons, strobes & horns
Road beacons, warning strobes, rotating lights. Assign them to armrest buttons. No extra switches to mount.

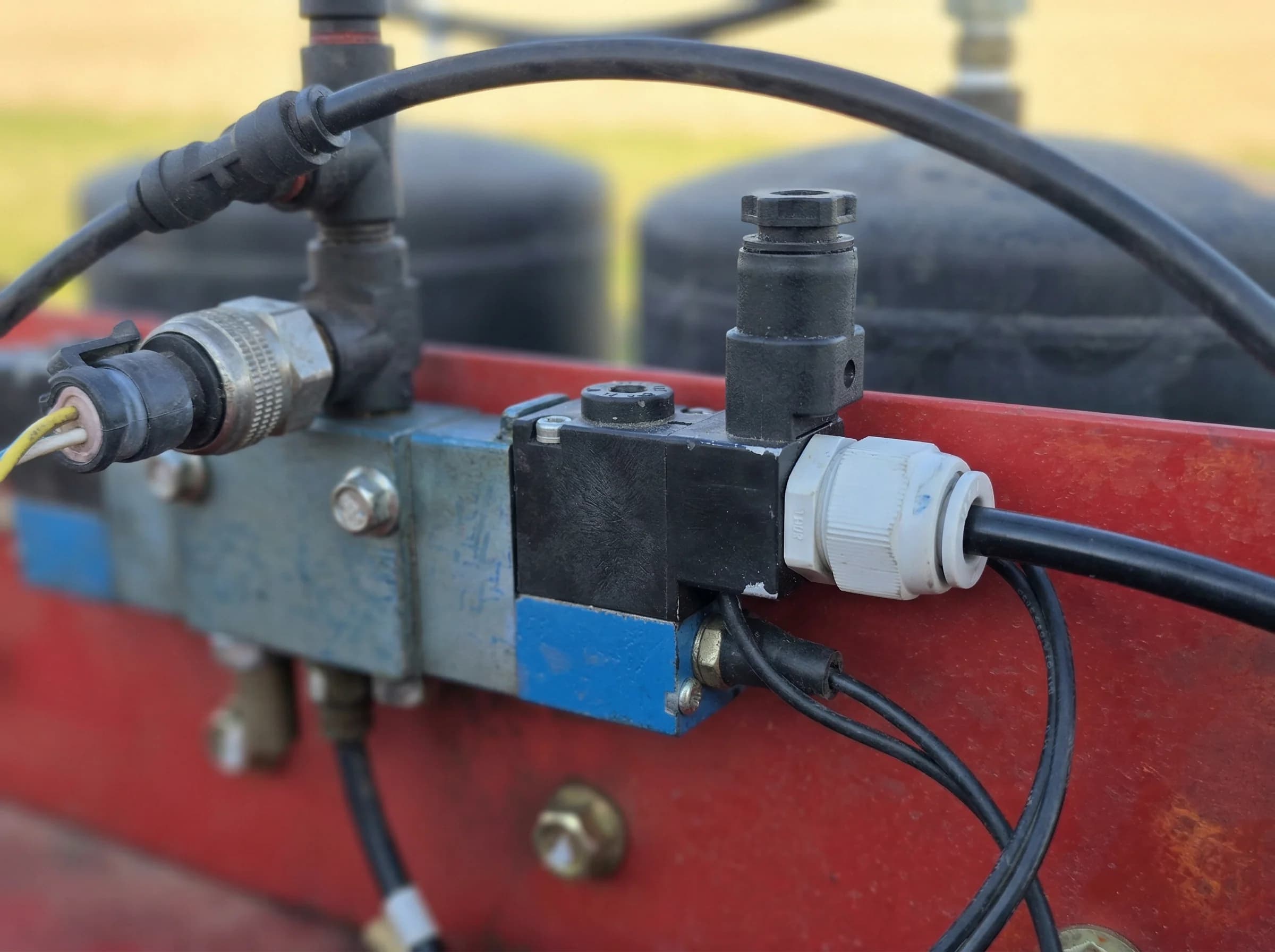

Pneumatic valves
Spreader gates, seed shut-offs, air valve blocks. Same 12V control, same joystick buttons.

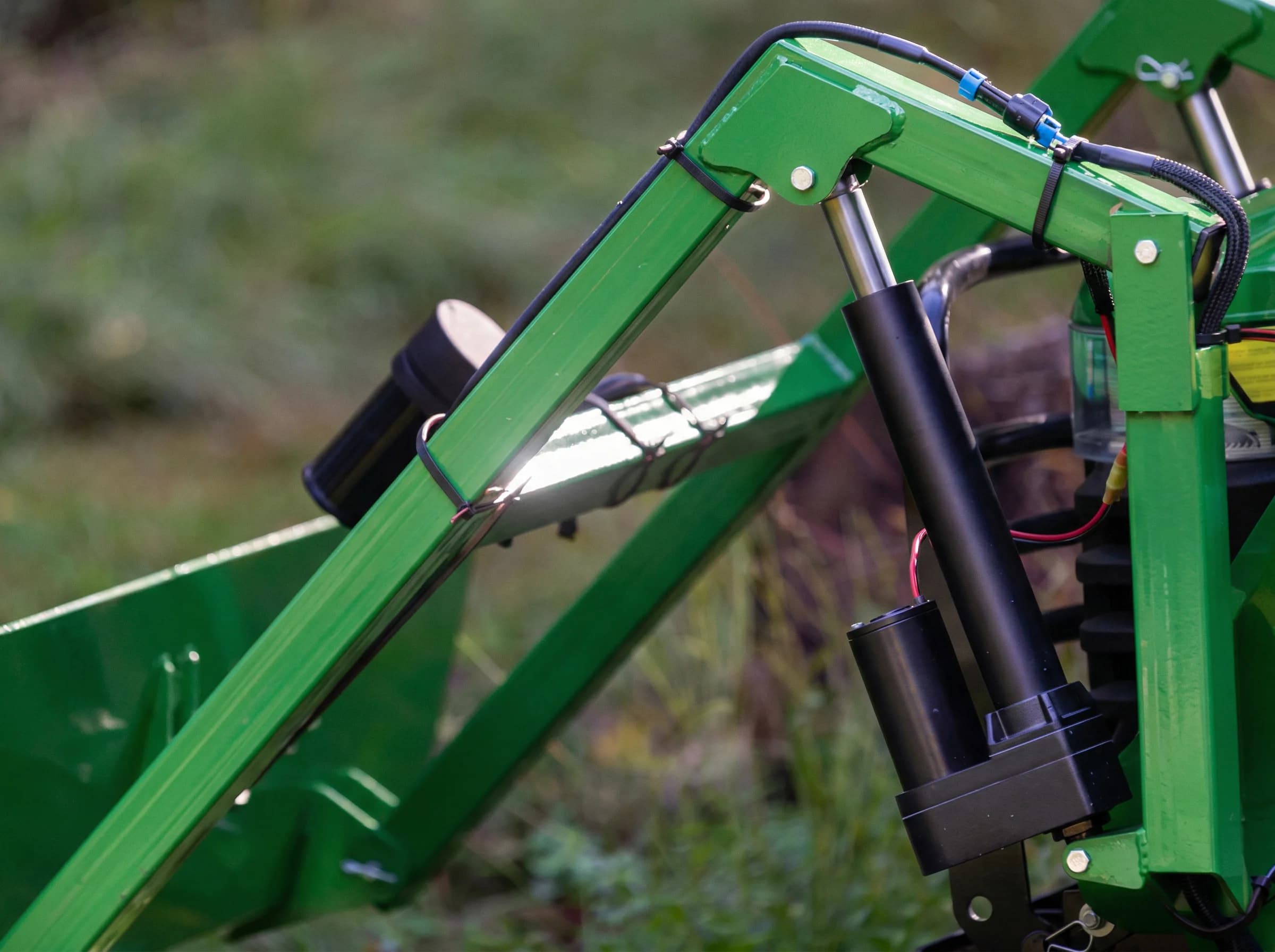

Electric actuators
Linear actuators and small motors. Anything 12/24V pulling under 10A.

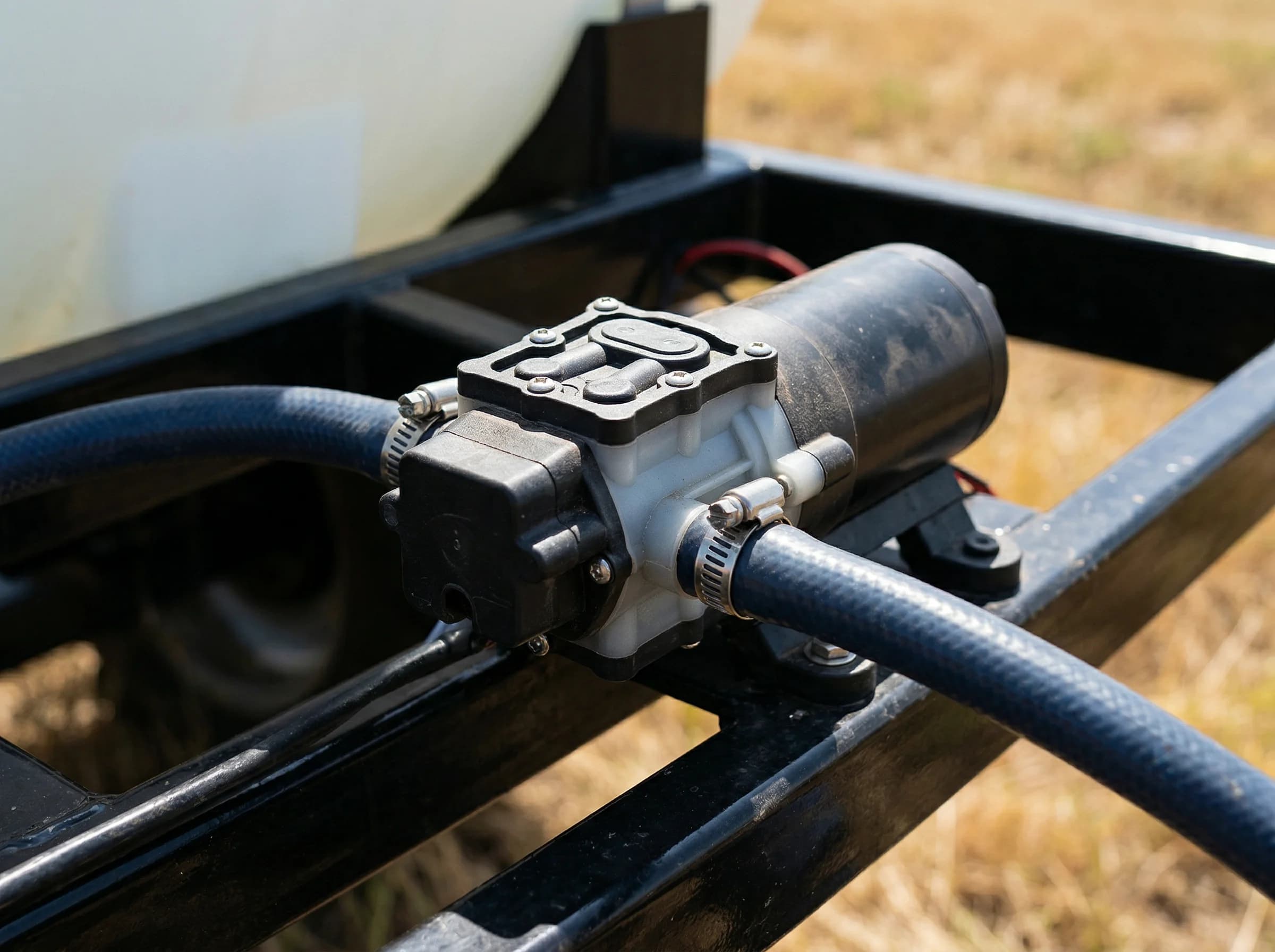

Pumps & fans
Wash pumps, transfer pumps, oil or liquid cooling fans. Assign each one to a joystick button. No toggle switch to wire in.
Modernize an old implement. Run it from the cab.
Run a twenty-year-old seed drill from the tractor's own screen and AUX-N buttons. Wire its functions to relay channels, or have the whole build made for the machine.
Have it built for your machineGuides and background
Longer reading on the parts, the wiring and the terminal.

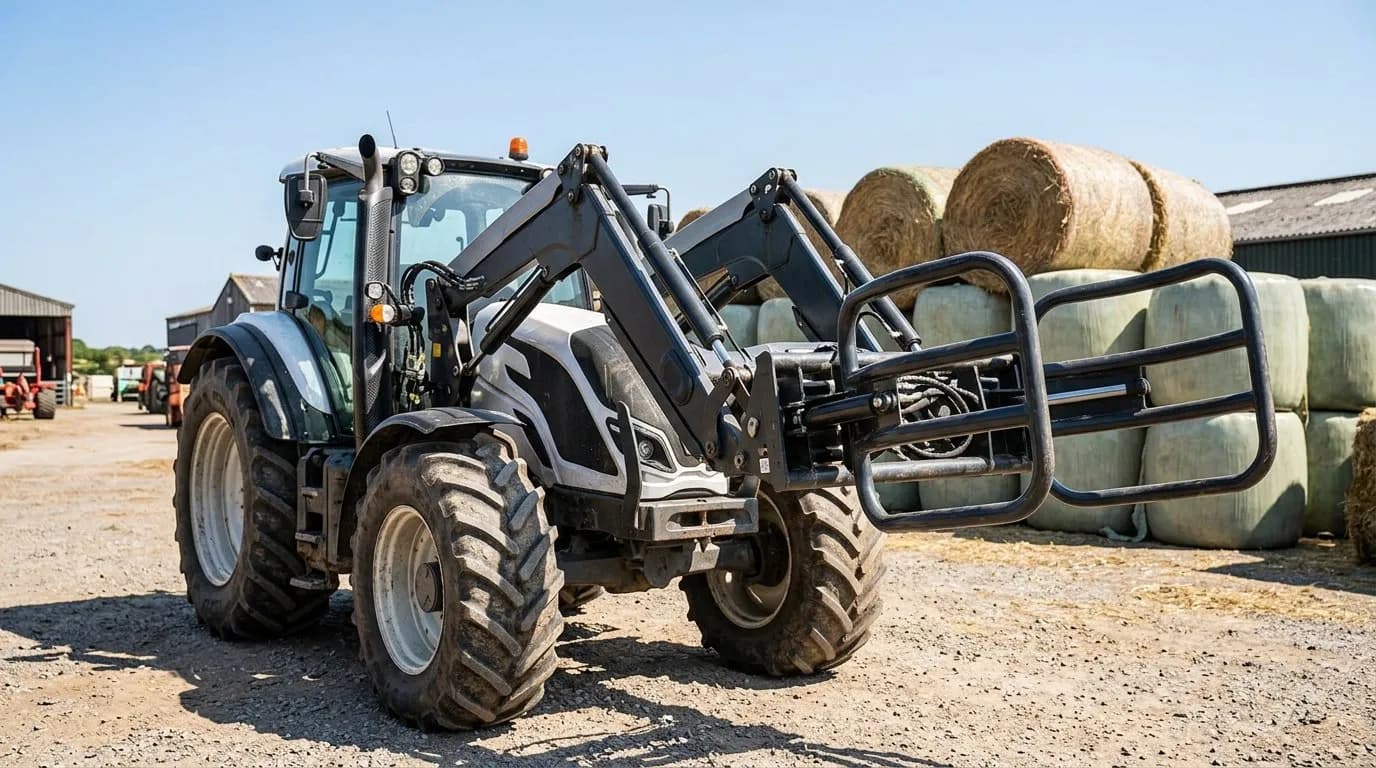

- Front Loader Third FunctionAdd a third hydraulic function to your front loader with ISOBUS Block and a diverter valve. Control the solenoid from AUX-N buttons or the tractor screen — no...

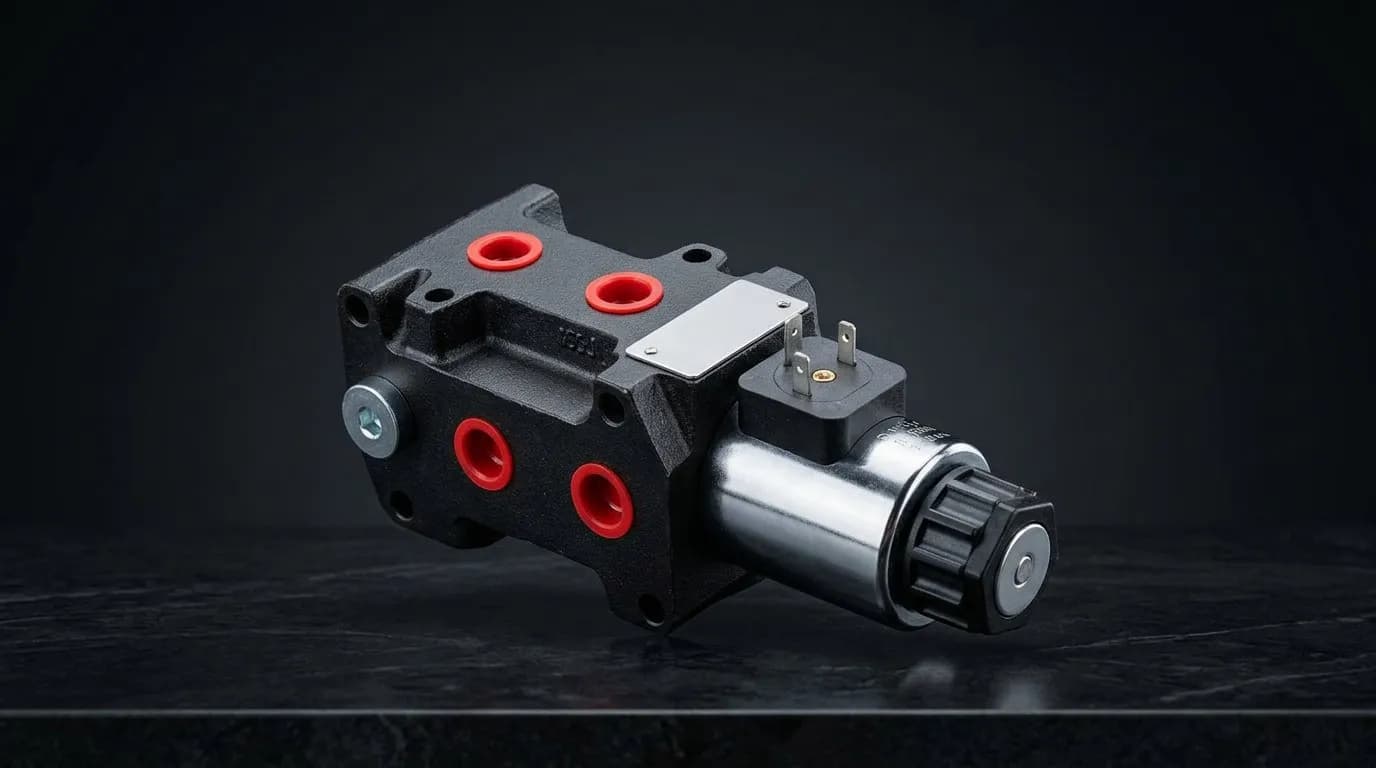

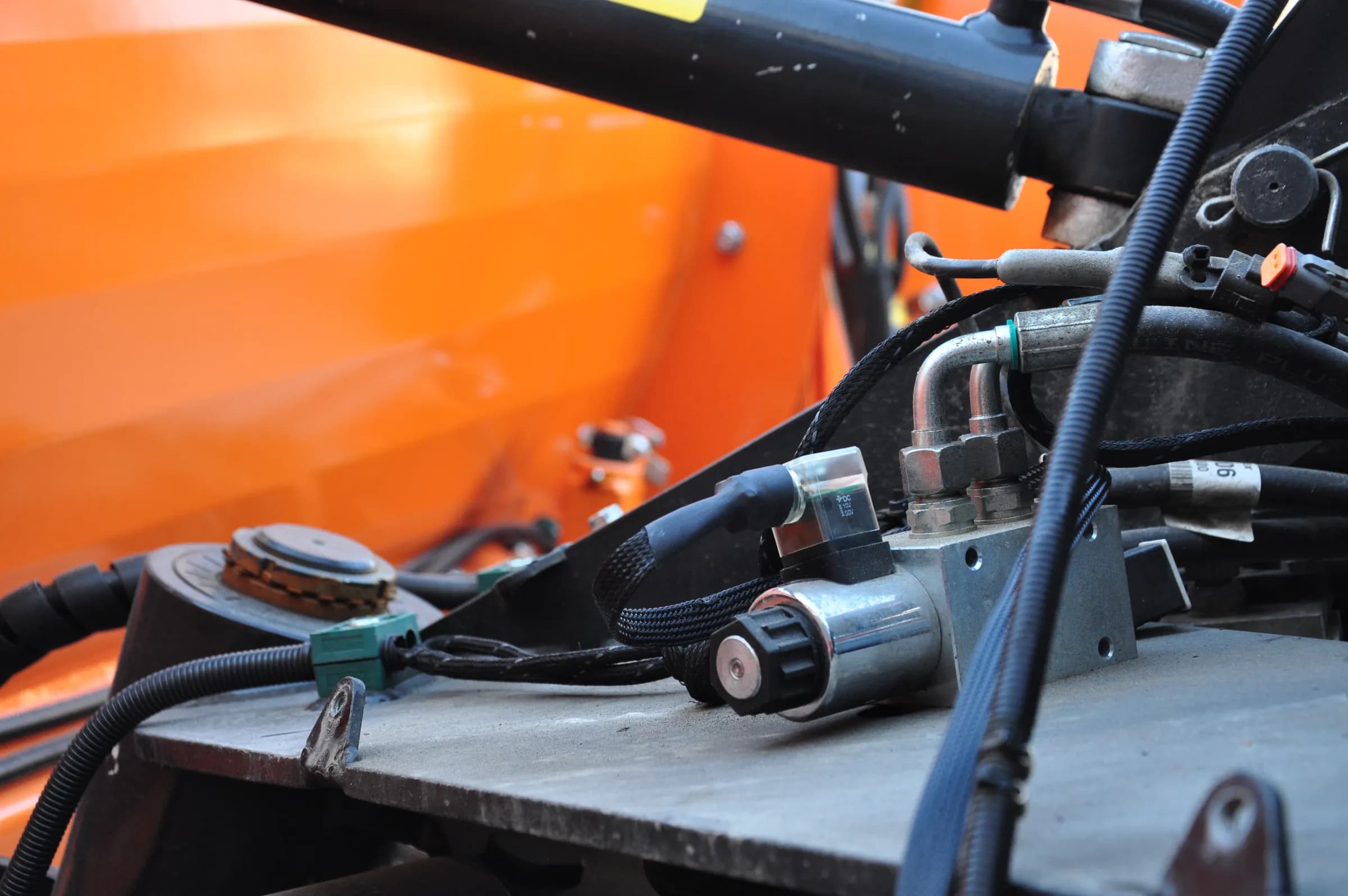

- Multi-Solenoid Implement ControlControl implements with multiple solenoids using ISOBUS Block. Group outputs for synchronized operation, choose momentary or toggle modes. Works with snow...

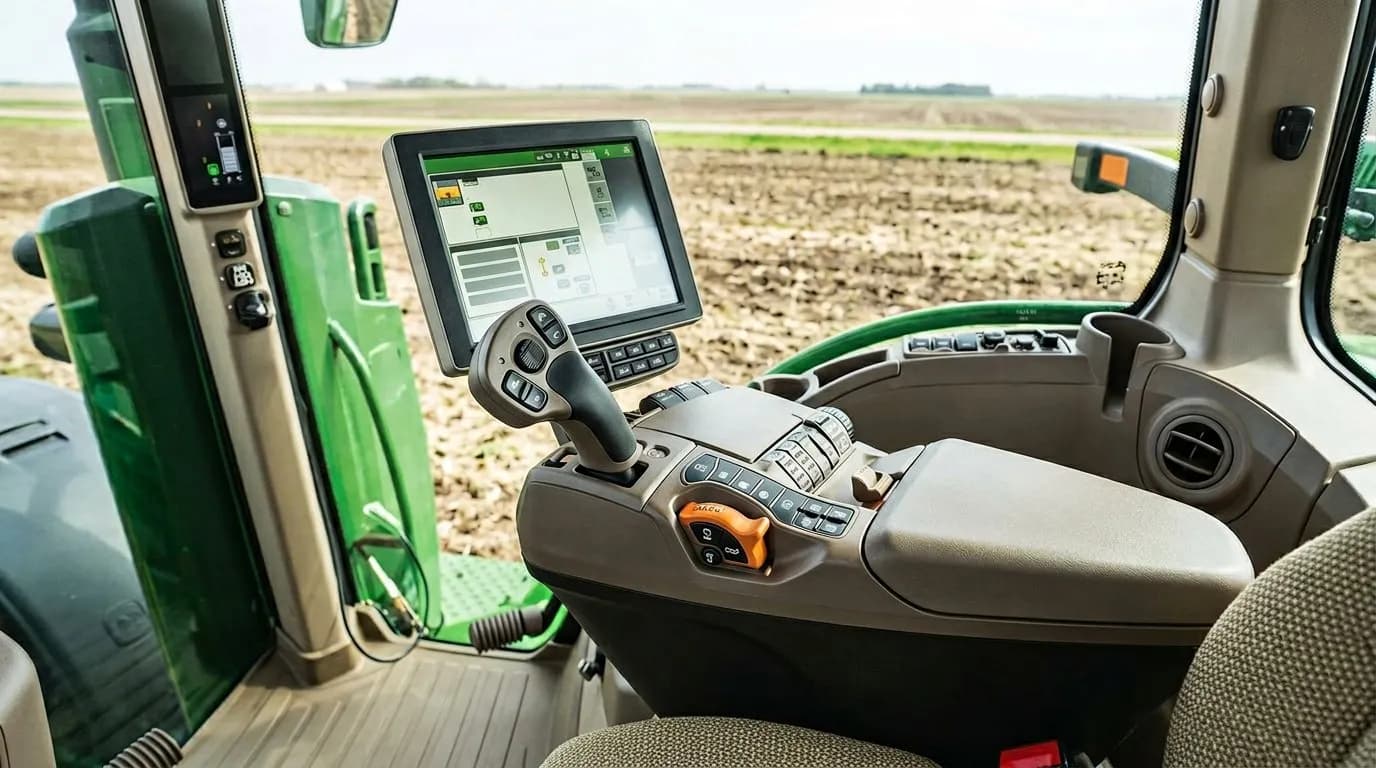

- Modernizing Older ImplementsMake any older implement ISOBUS-compatible. Install ISOBUS Block on the implement, connect existing solenoids and lights, plug into any tractor's ISOBUS...
