What if my load doesn't have a Deutsch connector?

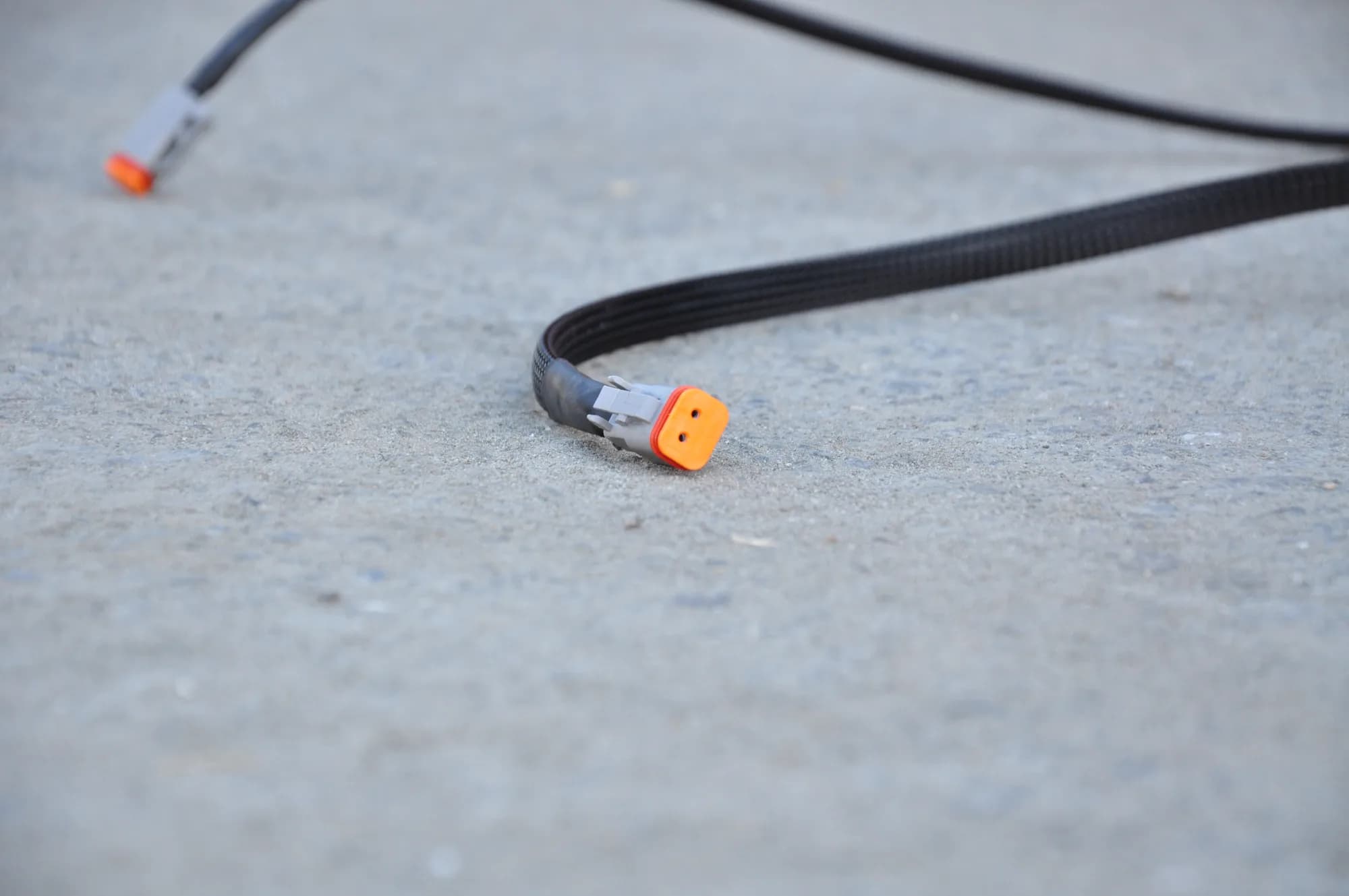

Each output on the kit is a short flying lead ending in a 2-pin Deutsch connector. Fit the mating Deutsch connector to your own load wire and plug in. Each channel switches up to 10A, so size the wire for the load.

How do I connect my loads to the implement kit?

Each output is a short flying lead ending in a 2-pin Deutsch connector. You fit the mating Deutsch to your own wire and run it to the load — whatever length you need. Each channel switches up to 10A, so size each wire for its load.

Can I relocate the box later?

Yes. It's a bolt-on box — unbolt it, unplug the ISOBUS connector and the output connections, and remount it wherever suits you.

Is the kit weatherproof at a pressure wash?

The enclosure is IP65-rated with sealed glands. It handles rain, field dust, and a pressure washer at normal distances.

ISOBUS Block + Plug-and-Play Implement Kit

Name: ISOBUS Block + Plug-and-Play Implement Kit
Brand: ISOBUS Block
SKU: ISOBUSBLOCK-IMPLEMENT
Price: 1799 USD
Availability: PreOrder

Description

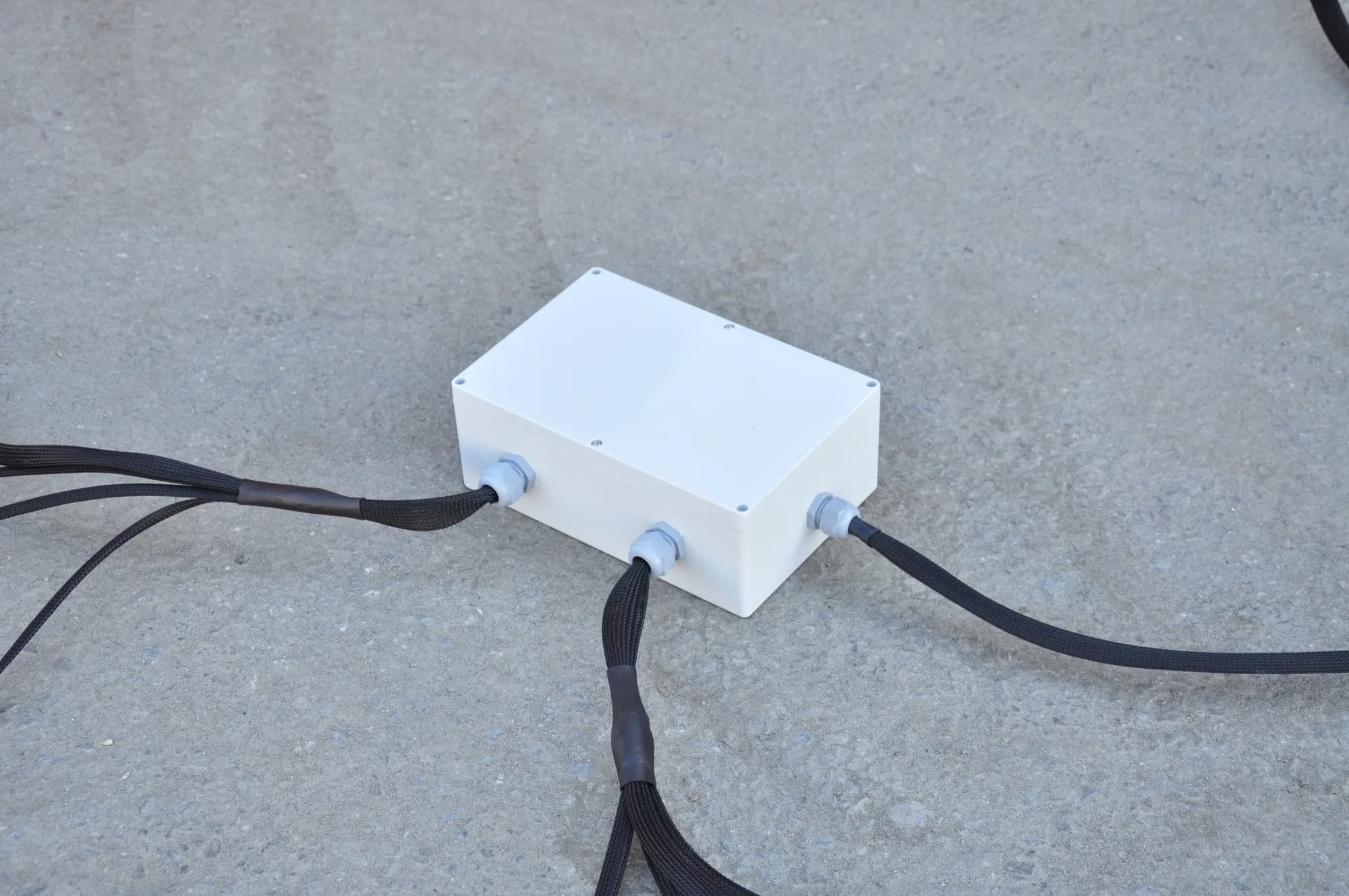

Bolt it on. Plug it in. Drive. A weatherproof IP-rated box holding the 8-channel ISOBUS relay module, with the ISOBUS connector already on the tractor side and eight 2-pin Deutsch connectors on the implement side. No cabinet to build. No screw terminals to wire. Bringing an old seed drill into ISOBUS control. Modernizing a multi-function trailer so the operator runs it from the tractor screen instead of a separate switch panel. Retrofitting any analog implement that has electrical loads worth controlling from the cab. Mate your loads with matching Deutsch plugs and you're done. 8 × 10A relay outputs, each on its own 1.3 m lead. Built for where implements live. Field dust, pressure washers, vibration, cold starts at −30 °C — the enclosure takes all of it and the relay side stays dry. What you get Relay module pre-mounted in a weatherproof enclosure. ISOBUS connector on a long lead that reaches the rear of the tractor. 8 × 1.3 m channel leads with 2-pin Deutsch connectors. Mounting bracket. Quick-start guide. Who it's for Integrators and builders modernizing older analog implements — electrifying seed drills, updating multi-function trailers, converting any non-ISOBUS machine into one the operator runs from the tractor screen. And operators who want the fastest path from shipping box to first pass. How you install it Bolt the box to the implement. Plug the ISOBUS lead into the tractor's rear ISOBUS connector. Mate the Deutsch connectors to your loads. Assign the buttons from the screen. Drive.

How It Works

Name it. Assign it. Press it.

Plug in one ISOBUS cable, wire your loads, then set up your buttons from the tractor screen.

Step 1

Name your button

Type a name (up to 8 characters), pick an icon, select which outputs it controls, and choose toggle or momentary mode.

ISOBUS Block dashboard with custom-named buttons and icons

Step 2

See it on the screen

Your buttons show up on the tractor display with the names and icons you chose. Pick a layout that fits your setup.

Step 3

Assign to your joystick

Open the tractor's AUX-N menu. Your named buttons appear there — assign them to any joystick or armrest button you want.

Step 4

Press it

Your joystick button switches the relay. Active outputs light up green on the screen. That's the whole system.

Prefer to build it yourself?

ISOBUSBLOCK-CABIN

ISOBUS Block + In-Cabin Wiring Harness

$1,249

Module plus a pre-built 1.8 m harness to the in-cab ISOBUS connector.

See this option

ISOBUSBLOCK-MODULE

ISOBUS Block — 8-Channel Relay Module

$1,099

Bare module for integrators. You wire the harness and the output side yourself.

See this option

What's included

Specifications
Control	Tractor screen (CH1–CH8, TOG / MOM) and AUX-N joystick or armrest button
Includes	Relay module + weatherproof enclosure + pre-terminated ISOBUS connector + 8 × 1.3 m channel leads with 2-pin Deutsch connectors + mounting bracket
Warranty	5 years
Enclosure	Weatherproof IP-rated box, implement-mount
Max current	10A per channel

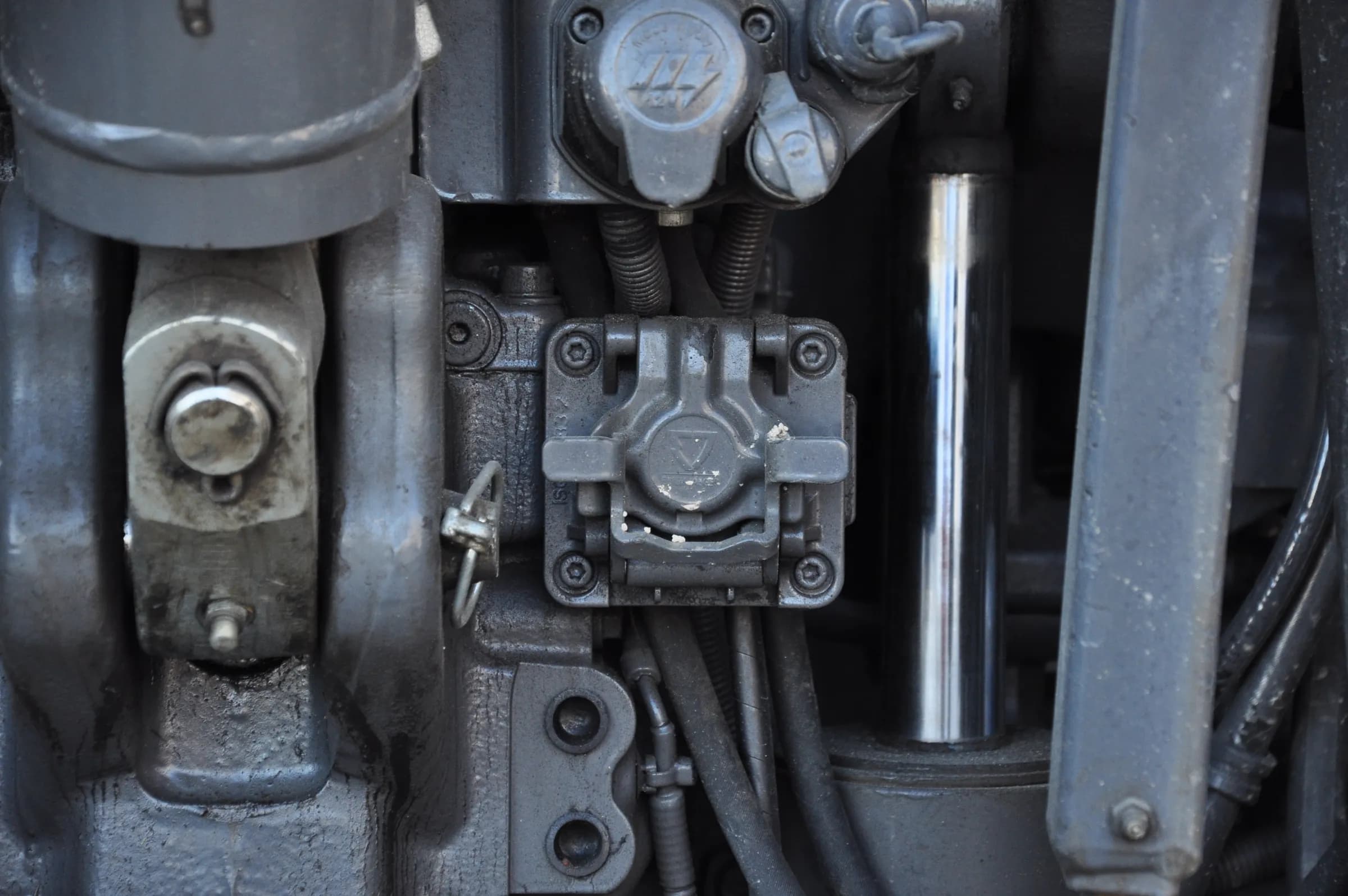

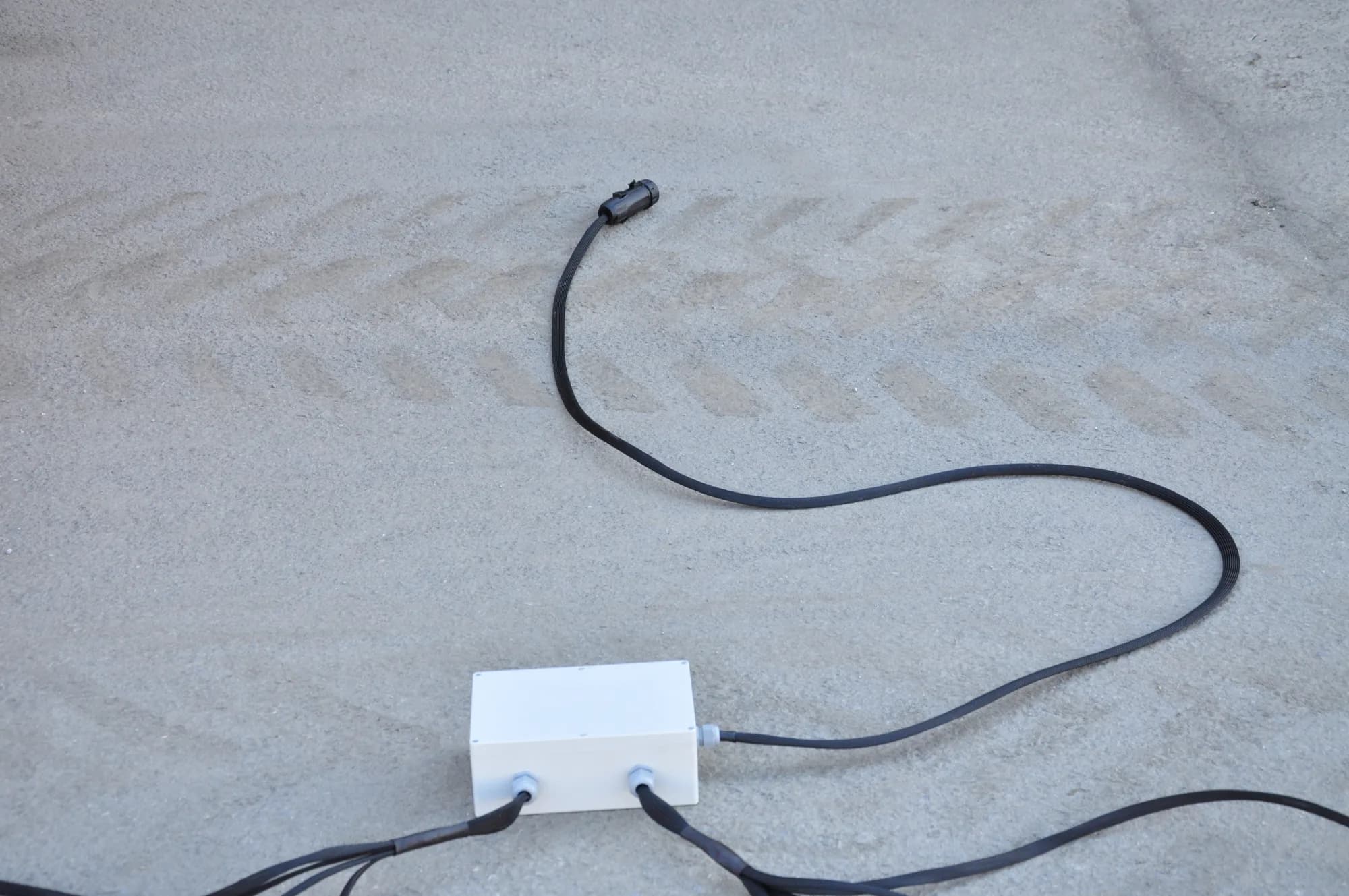

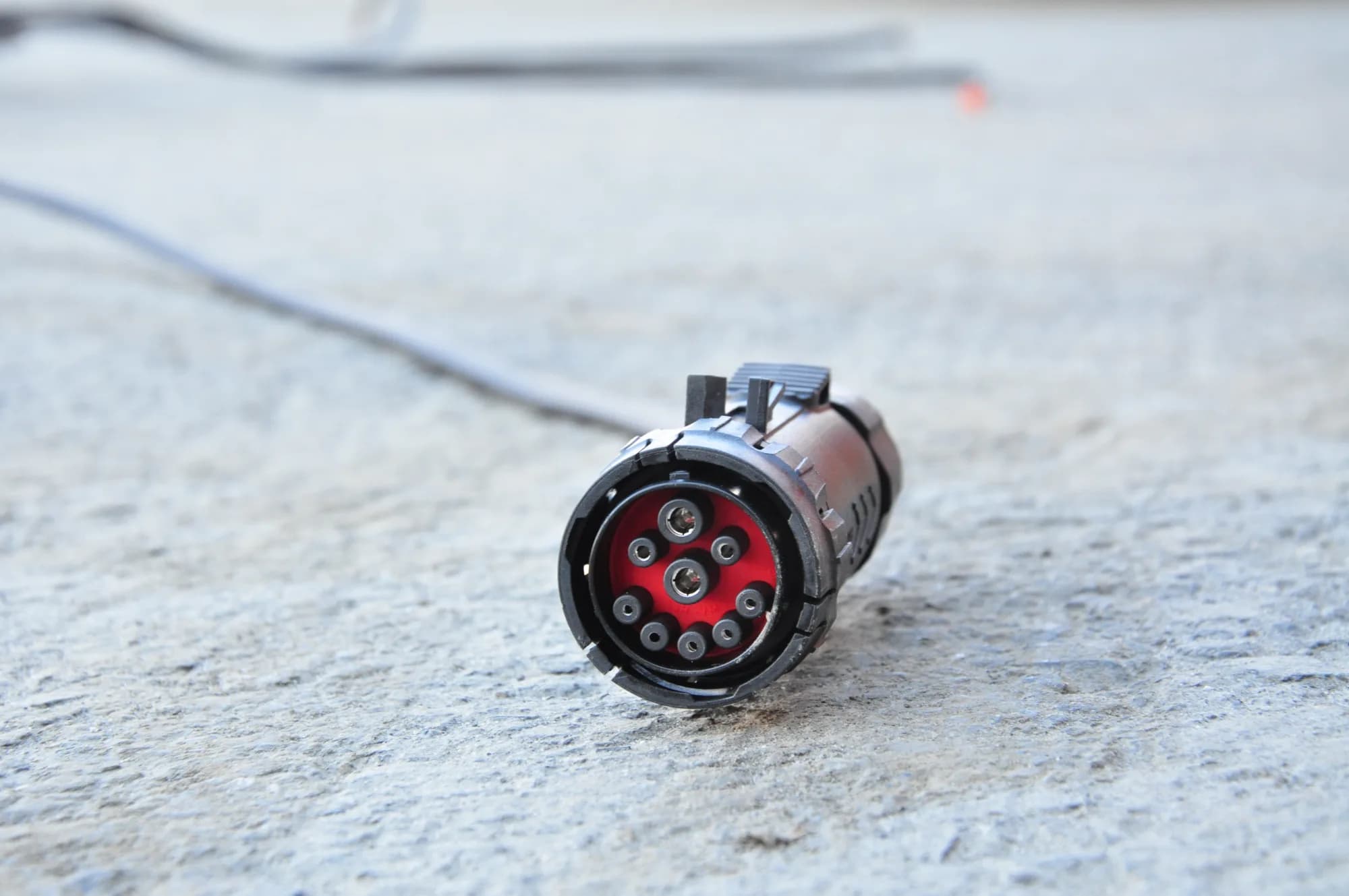

Tractor side	ISOBUS connector on a long lead that reaches the tractor's rear ISOBUS connector

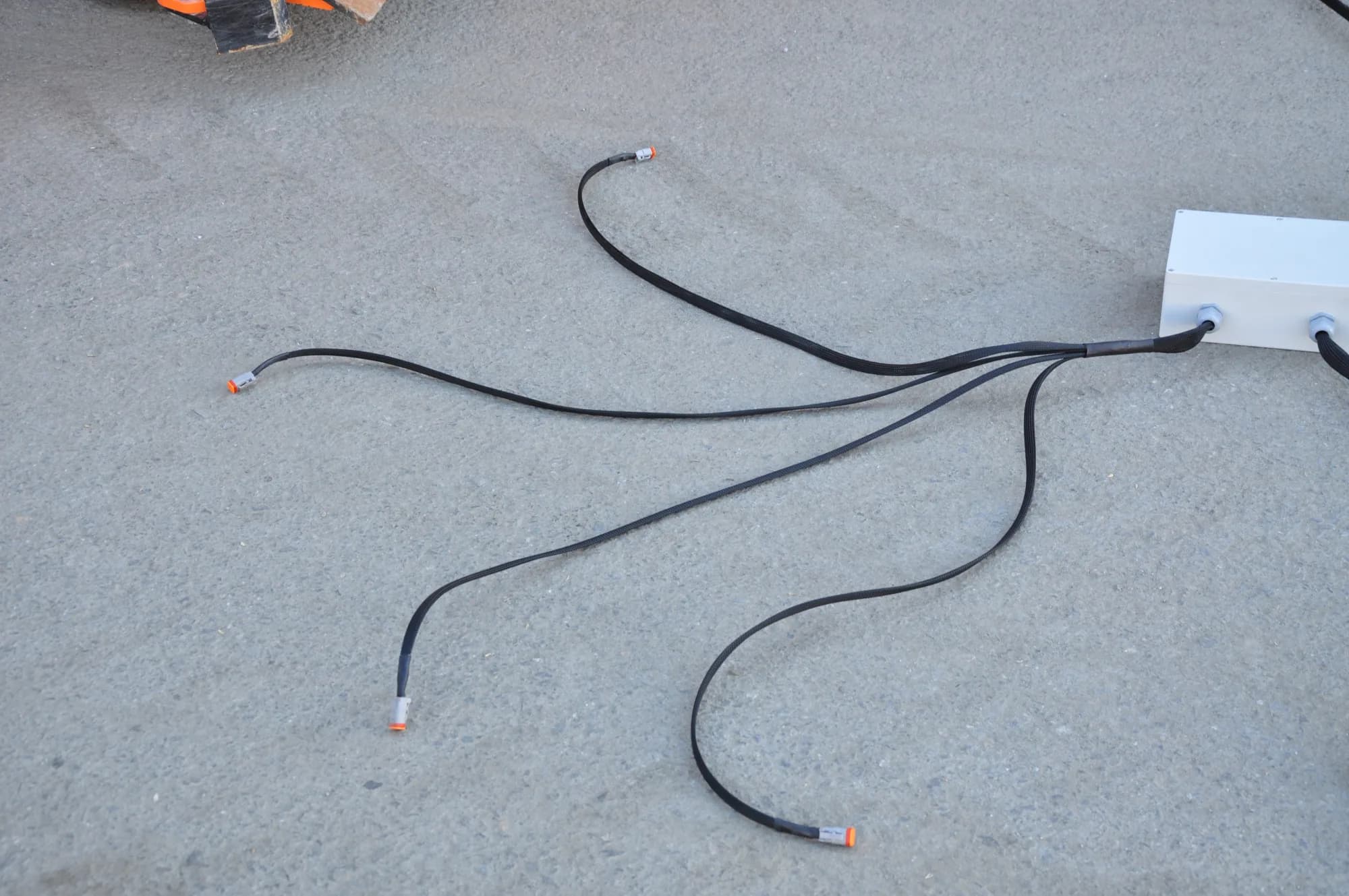

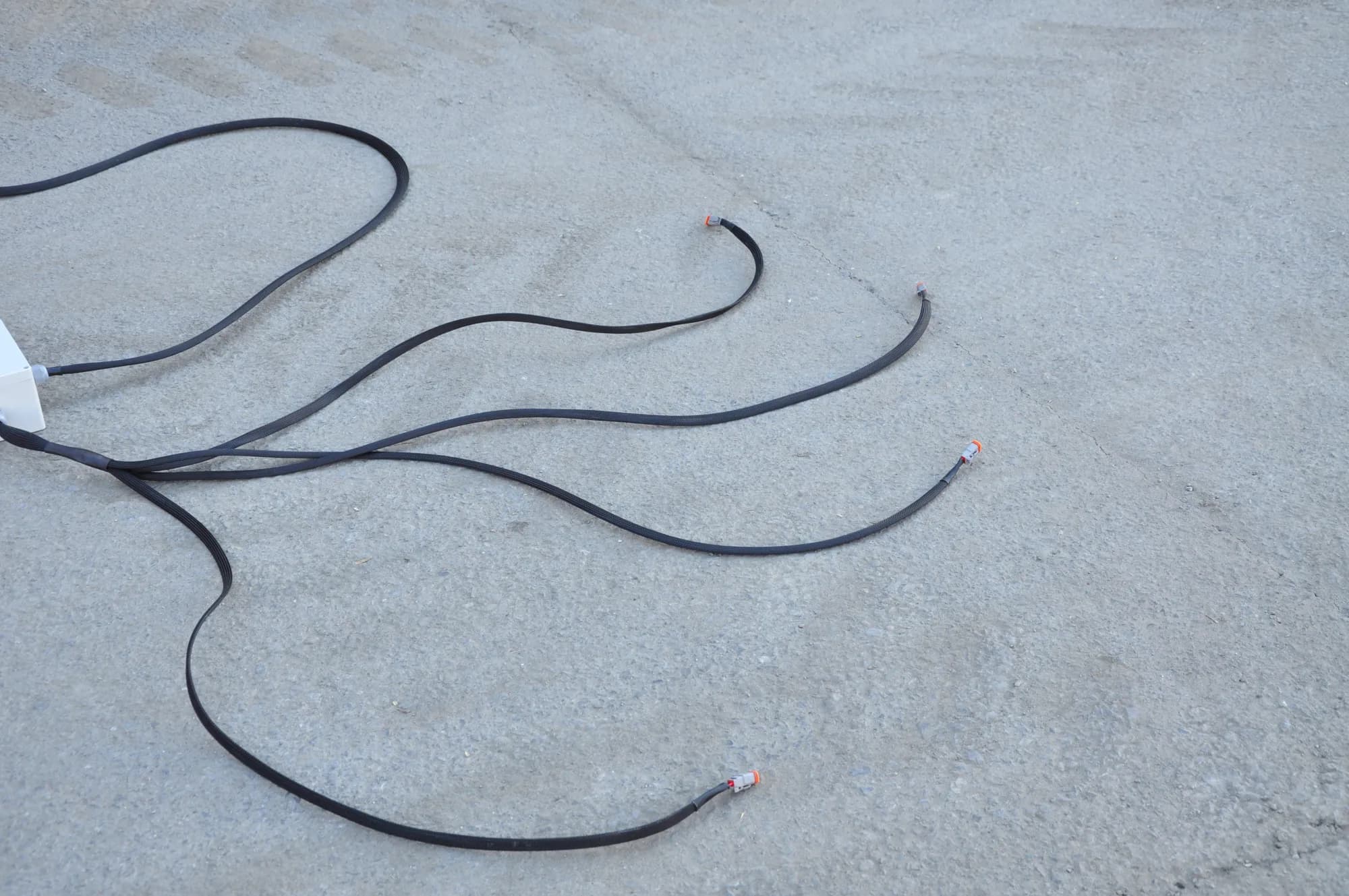

Channel wires	8 × 1.3 m, 2-pin Deutsch connector per channel
Installation	Bolt to implement, plug ISOBUS into tractor, mate Deutsch connectors to loads
Relay channels	8
Supply voltage	7–36V DC
Max switching voltage	250V AC / 30V DC

Before & After

What actually changes

Same tractor. Same cab. Completely different setup.

Drilling holes, mounting switches

Clean cab — no modifications

Relay boards, fuses, wire harnesses

One ISOBUS cable, done

Hard-wired, can't change it

Reassign any output from the screen

Reaching across the cab for toggle switches

Everything on your joystick hand

Which switch was the work light again?

Labels on the tractor display

AUX-N Control

8 Inputs in Your Tractor

The module shows up in your tractor's AUX-N menu with 8 assignable inputs. Pick a button, pick an output, done. Your assignments are stored in the tractor — reconnect next season and they're still there.

Group Channels Together

One button press, multiple relays. Open a valve and turn on a work light at the same time.

Toggle or Momentary

Toggle stays on until you press again. Momentary activates while you hold. Set it per channel.

Custom Names & Icons

Name each channel (up to 8 characters) and pick an icon. Your names and icons show up on the screen and in the joystick assignment page.

ISOBUS Block Virtual Terminal interface on Fendt screen with custom channel names and icons

Custom names and icons on the Virtual Terminal — active channels highlighted in green

Fendt AUX-N assignment page showing ISOBUS Block custom names and icons on joystick buttons

Same names and icons carry over to the joystick button assignments

See it in action

The actual screens you'll use — button editor, layout options, AUX-N assignment, and more.

ISOBUS Block dashboard with 8 custom-named buttons and icons

ISOBUS Block layout selector — 2x4, 4x2, 1x8, BIG4, BIG2

Name each button, pick an icon, choose outputs and mode

Specifications

Built for the field. 8 relay channels, 10A each, 7–36V input. Set up everything from the tractor screen.

ISOBUS Native

Shows up on your Virtual Terminal. Works with any ISOBUS tractor — John Deere, Case IH, New Holland, Kubota, AGCO.

WiFi Built In

Test outputs, check status, update firmware. Connect with your phone — open a browser, no app needed.

12V and 24V

7–36V DC input. Any ISOBUS tractor, 12 V or 24 V system.

Professional Grade

Designed in Finland. Built for the field, not the bench.

Machine side: CAN and power

Relay side: 8 channel terminals

DIN rail mount clips

Supply voltage	7–36V DC
Relay channels	8 (NO, COM, NC per channel)
Max current	10A per channel
Max switching voltage	30V DC / 250V AC
Protection	Optocoupler isolation, power isolation
Enclosure	Rail-mount ABS housing (indoor use; requires weatherproof enclosure for outdoor installation)
Dimensions	3.5 × 6.9 in (90 × 175 mm)
Weight	1.1 lb (500 g)
Operating temperature	−22°F to +122°F
Warranty	5 years
