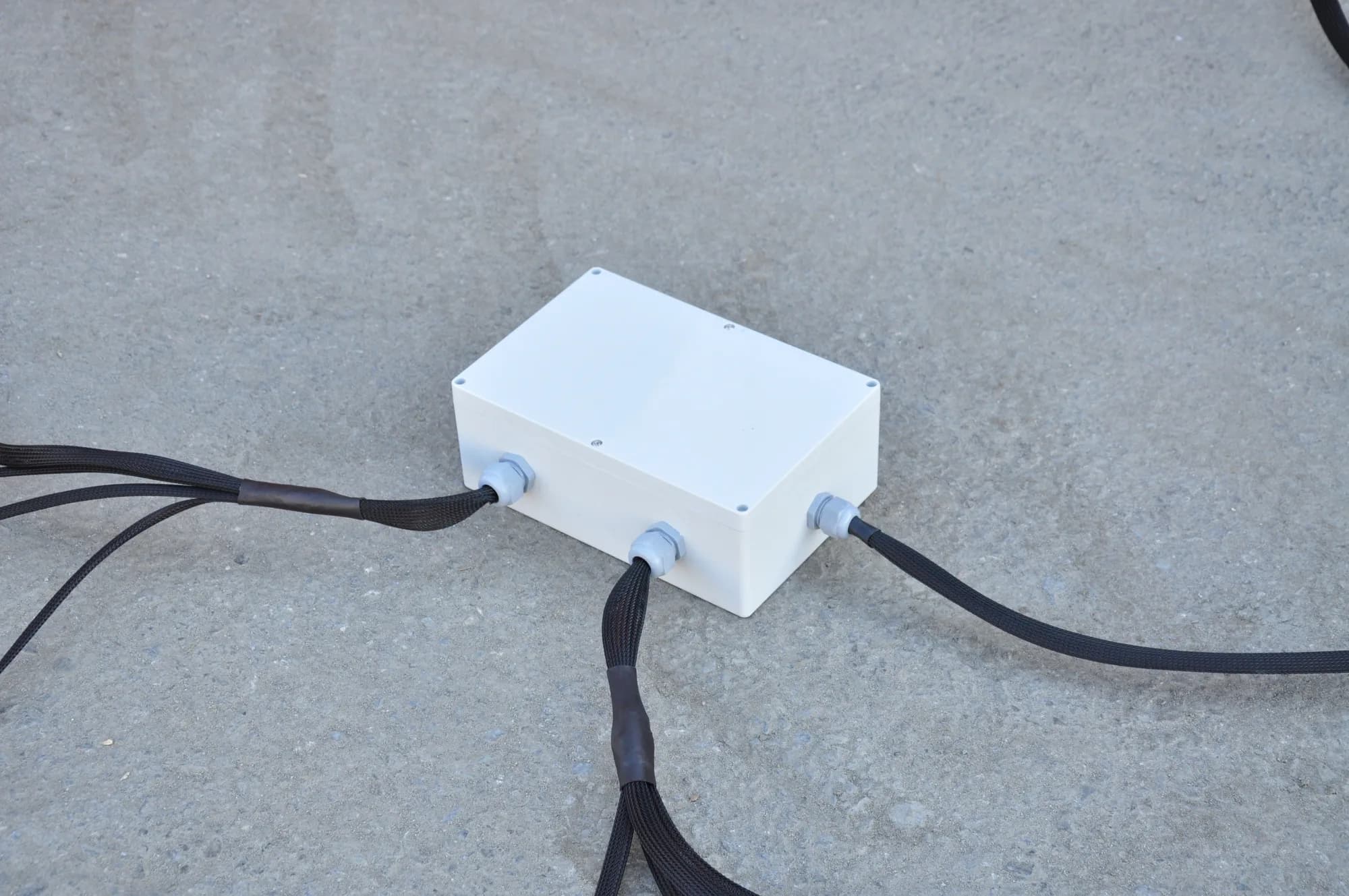

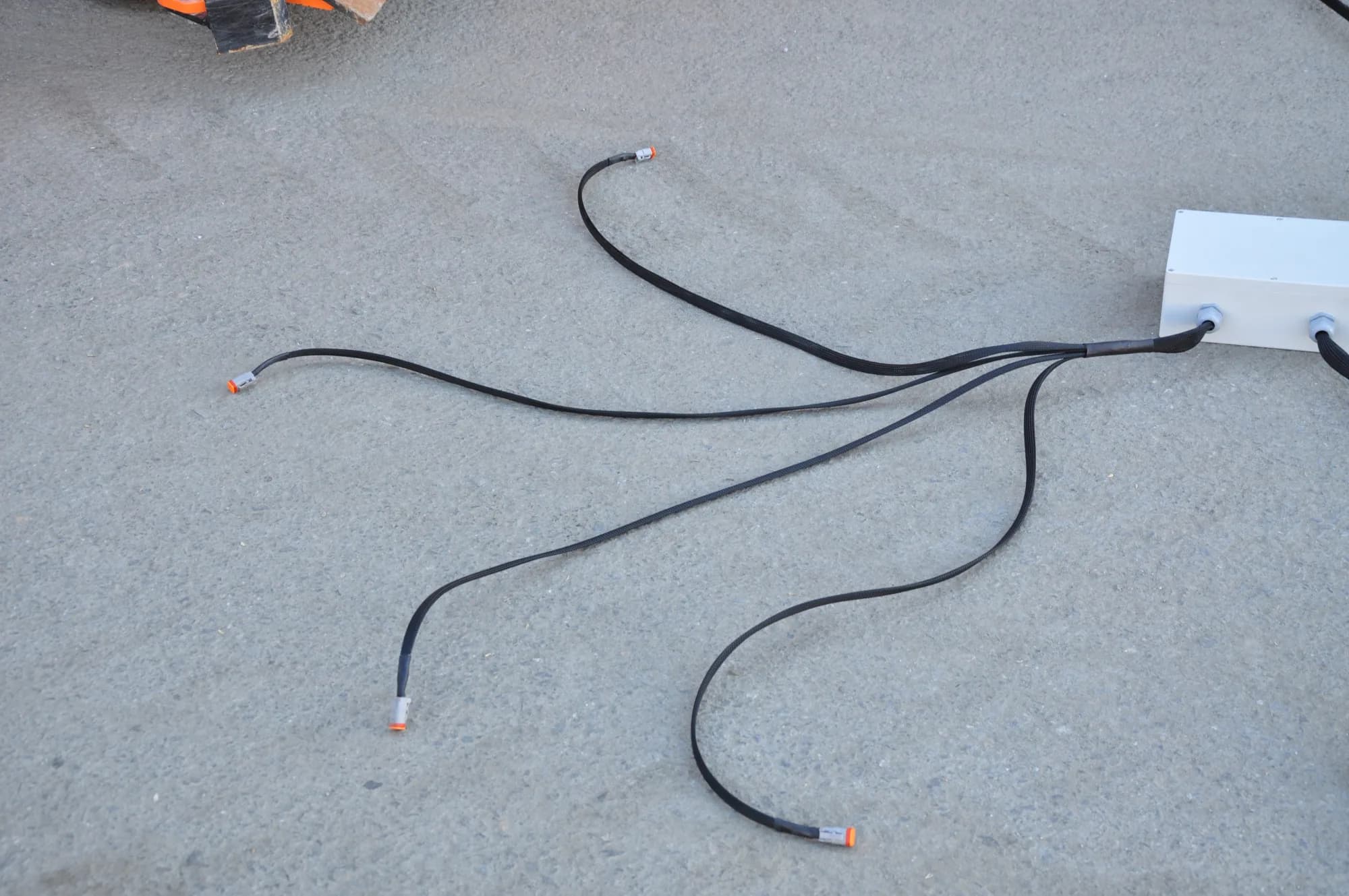

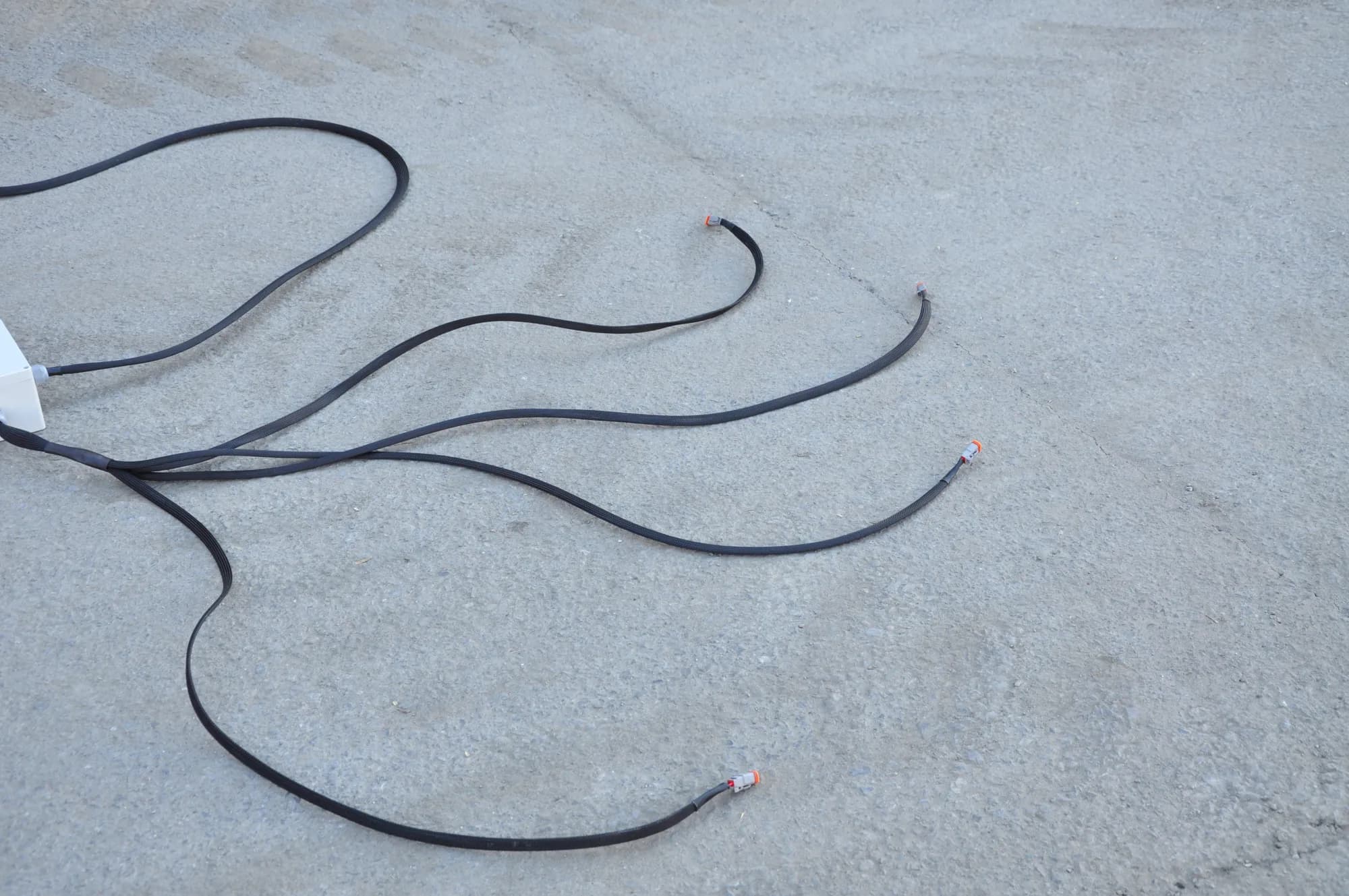

Module pre-mounted in a weatherproof box. One ISOBUS cable in, 8 channels pre-wired out to 2-pin Deutsch connectors.
Free shipping on all orders.
Plug in one ISOBUS cable, wire your loads, then set up your buttons from the tractor screen.
Type a name (up to 8 characters), pick an icon, select which outputs it controls, and choose toggle or momentary mode.
Your buttons show up on the tractor display with the names and icons you chose. Pick a layout that fits your setup.

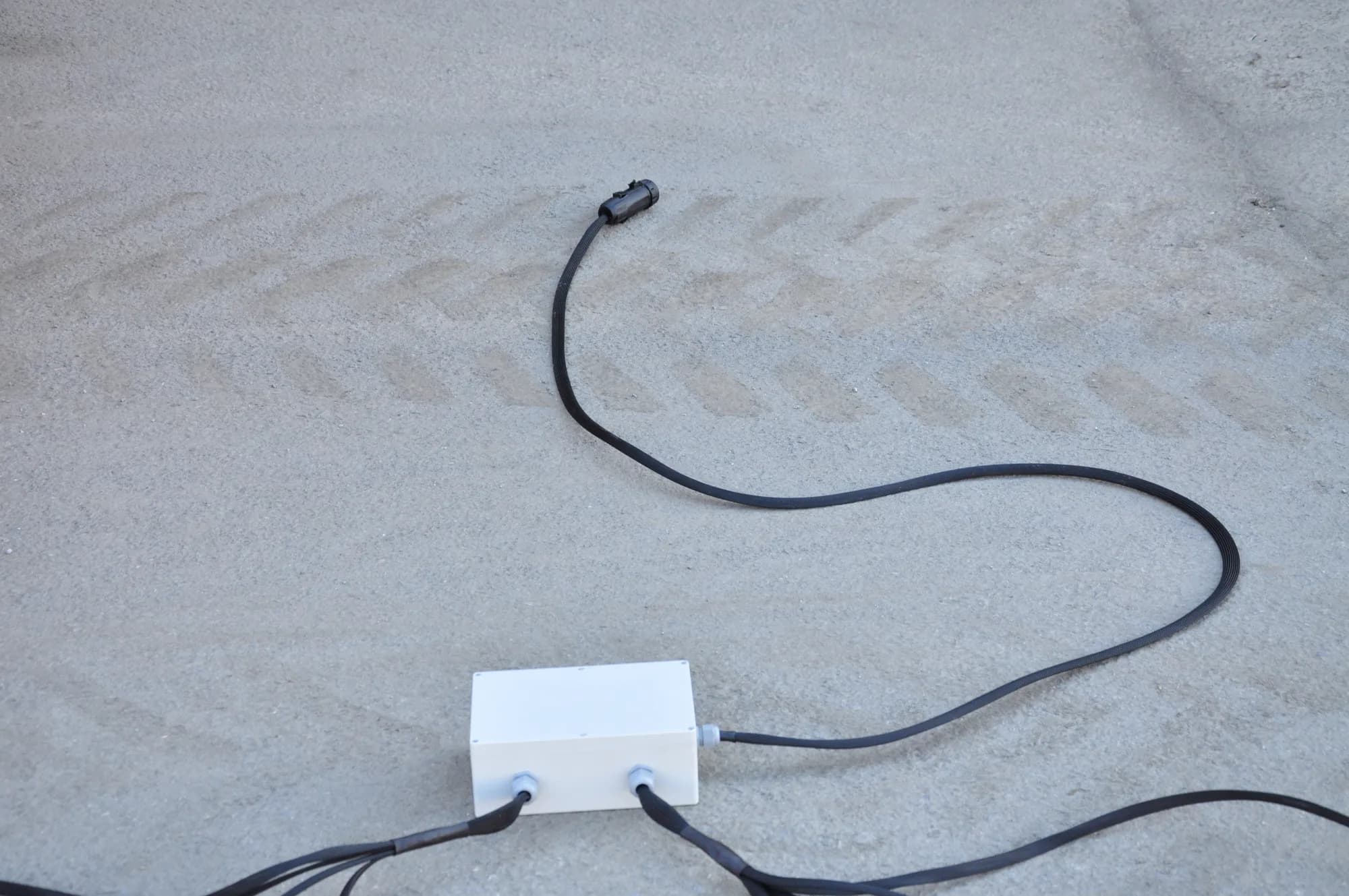

Module plus a pre-built 1.8 m harness to the in-cab ISOBUS connector.
See this optionBare module for integrators. You wire the harness and the output side yourself.
See this option| Specifications | |
|---|---|
| includes | Module + weatherproof enclosure + ISOBUS connector + 8 × 1.3 m pre-wired channels with 2-pin Deutsch terminations |
| warranty | 5 years |
| enclosure | Weatherproof IP-rated box, implement-mount |

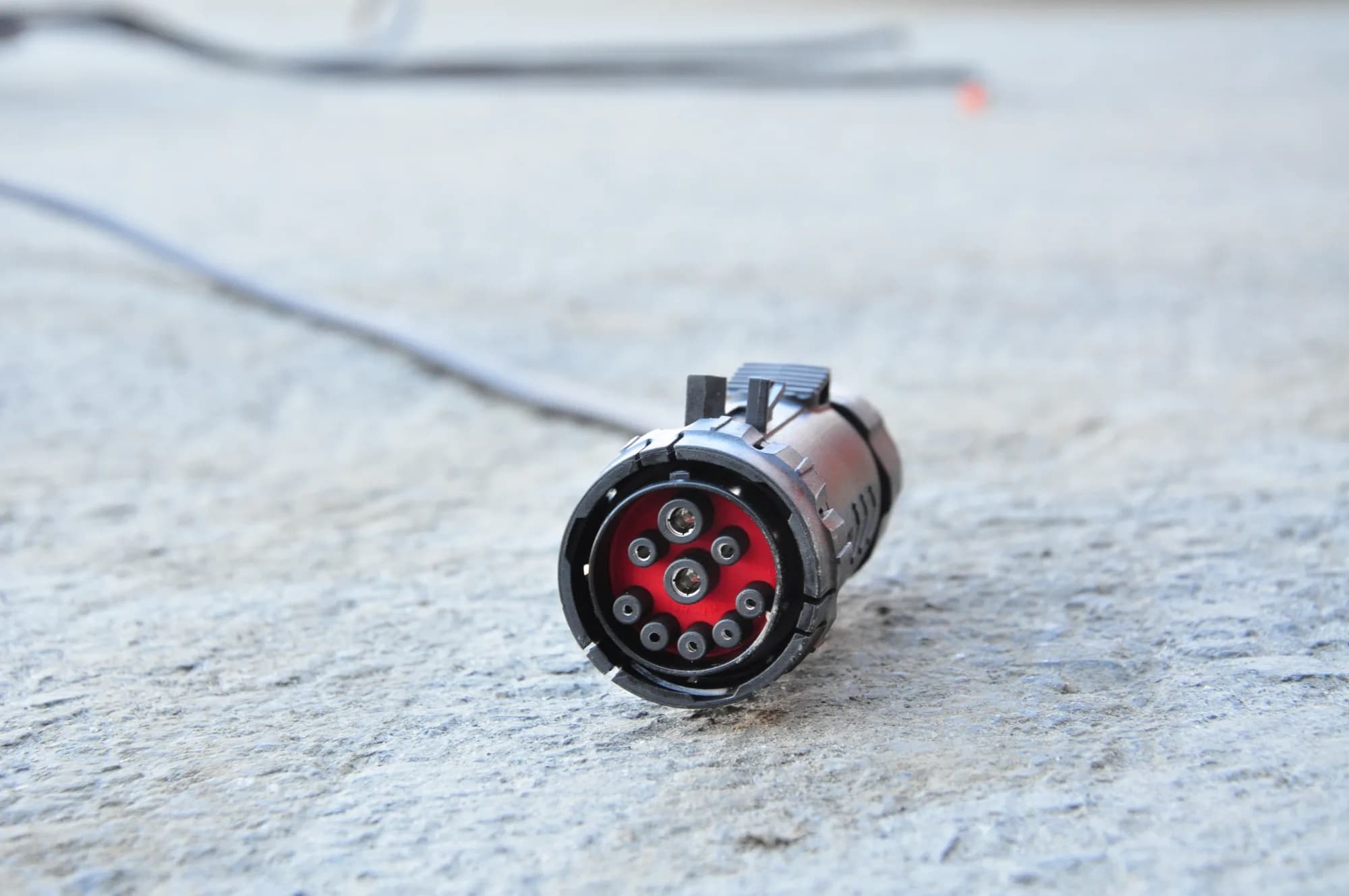

| tractorSide | ISOBUS connector (pre-terminated) |

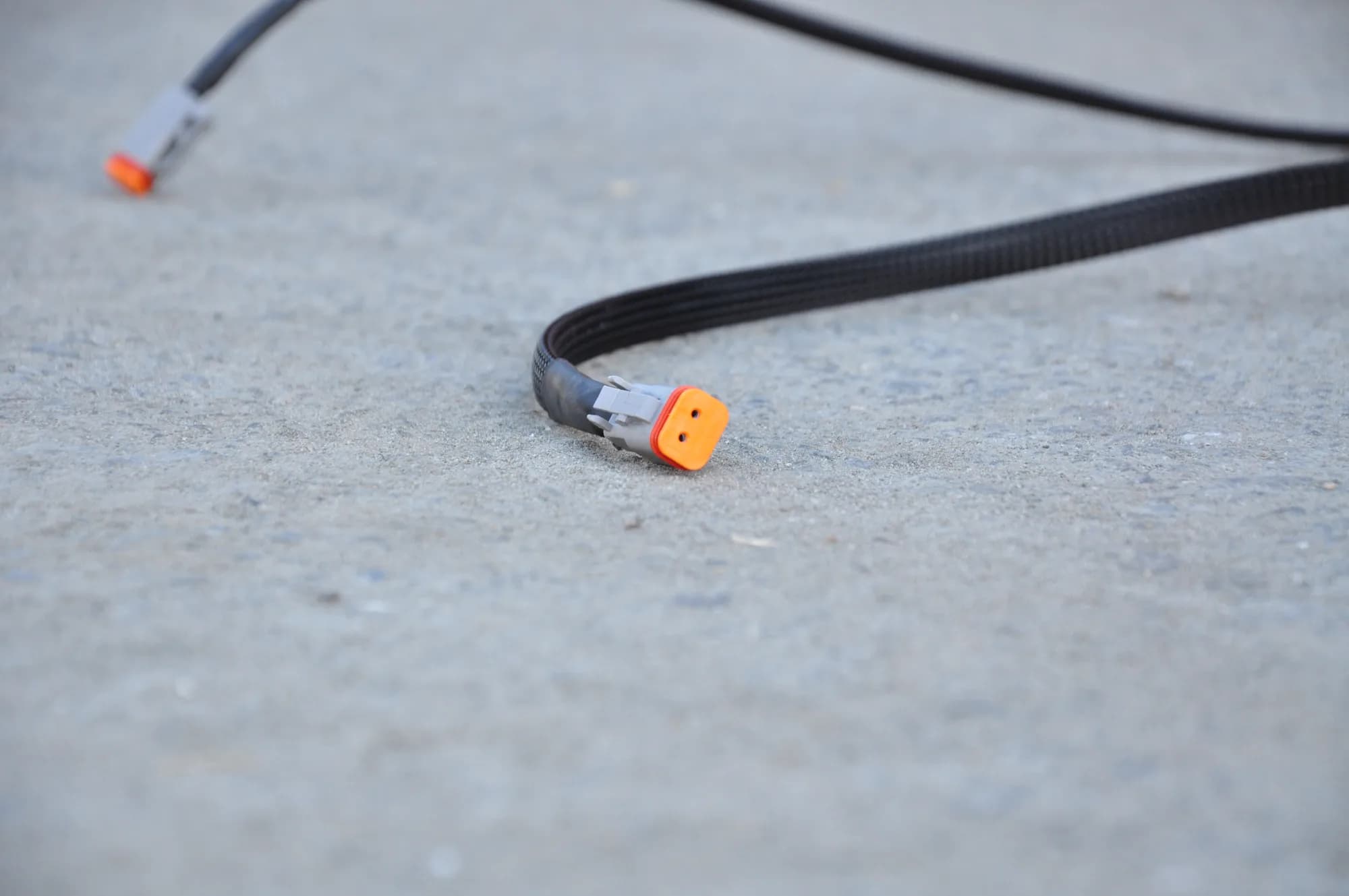

| channelWires | 8 × 1.3 m, 2-pin Deutsch connector on each |
| installation | Mount on implement, plug ISOBUS into tractor, mate Deutsch connectors to loads |
Same tractor. Same cab. Completely different setup.
The module shows up in your tractor's AUX-N menu with 8 assignable inputs. Pick a button, pick an output, done. Your assignments are stored in the tractor — reconnect next season and they're still there.
One button press, multiple relays. Open a valve and turn on a work light at the same time.
Toggle stays on until you press again. Momentary activates while you hold. Set it per channel.
Name each channel (up to 8 characters) and pick an icon. Your names and icons show up on the screen and in the joystick assignment page.
Custom names and icons on the Virtual Terminal — active channels highlighted in green
The actual screens you'll use — button editor, layout options, AUX-N assignment, and more.
Name each button, pick an icon, choose outputs and mode
Shows up on your Virtual Terminal. Works with any ISOBUS tractor — John Deere, Case IH, New Holland, Kubota, AGCO.
Test outputs, check status, update firmware. Connect with your phone — open a browser, no app needed.
7–36V DC input. Any ISOBUS tractor, 12 V or 24 V system.
Designed in Finland. CE certified. Built for the field, not the bench.

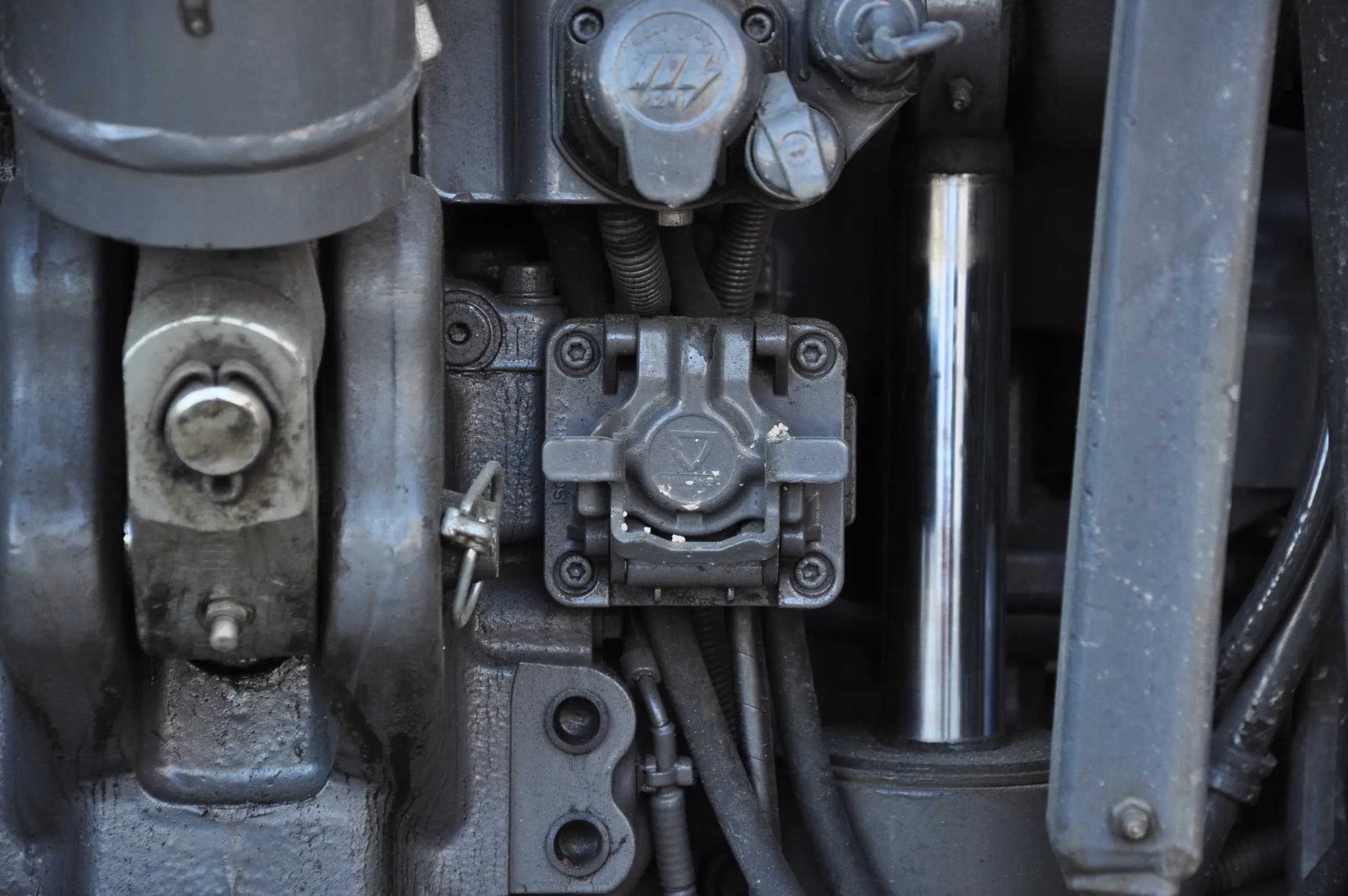

Module with pre-crimped in-cabin harness. Plugs straight into your tractor's ISOBUS breakout.
8 relay channels, 10A each, 7–36V input. Speaks ISOBUS. Control everything from the tractor screen.
Open the tractor's AUX-N menu. Your named buttons appear there — assign them to any joystick or armrest button you want.
Your joystick button switches the relay. Active outputs light up green on the screen. That's the whole system.
Same names and icons carry over to the joystick button assignments
| Supply voltage | 7–36V DC |

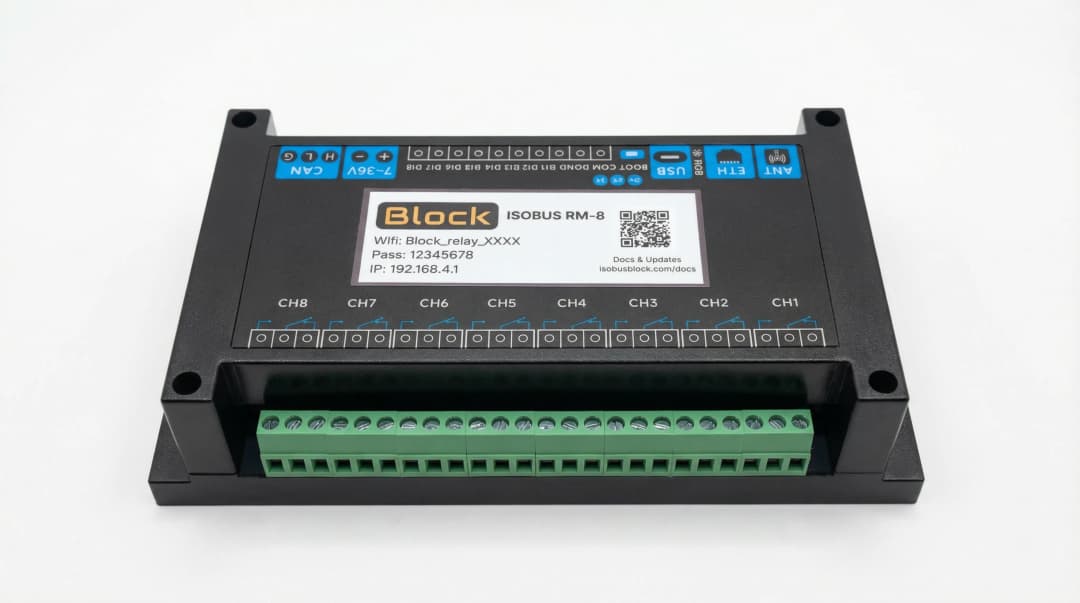

| Relay channels | 8 (NO, COM, NC per channel) |
| Max current | 10A per channel |
| Max switching voltage | 30V DC / 250V AC |
| Protection | Optocoupler isolation, power isolation |

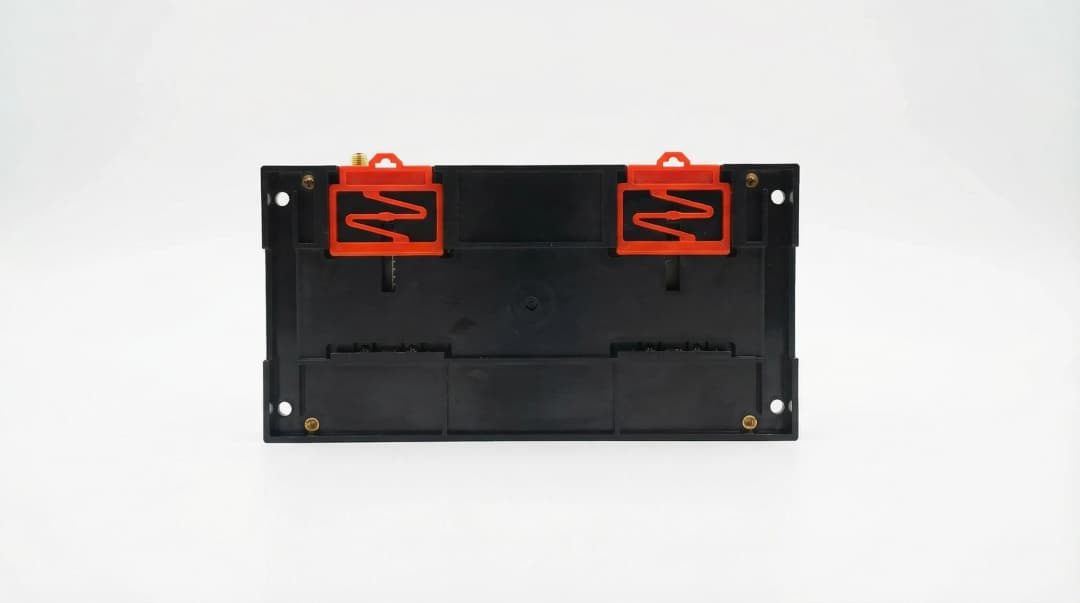

| Enclosure | Rail-mount ABS housing (indoor use; requires weatherproof enclosure for outdoor installation) |
| Dimensions | 3.5 × 6.9 in (90 × 175 mm) |
| Weight | 1.1 lb (500 g) |
| Operating temperature | −22°F to +122°F |
| Warranty | 5 years |
